Description
Product Description
- Isolated RS485 Communication
- Mutual Induction & Transmission
- High Precision and Indipendednt Sampling
- Distortion Free Sampling

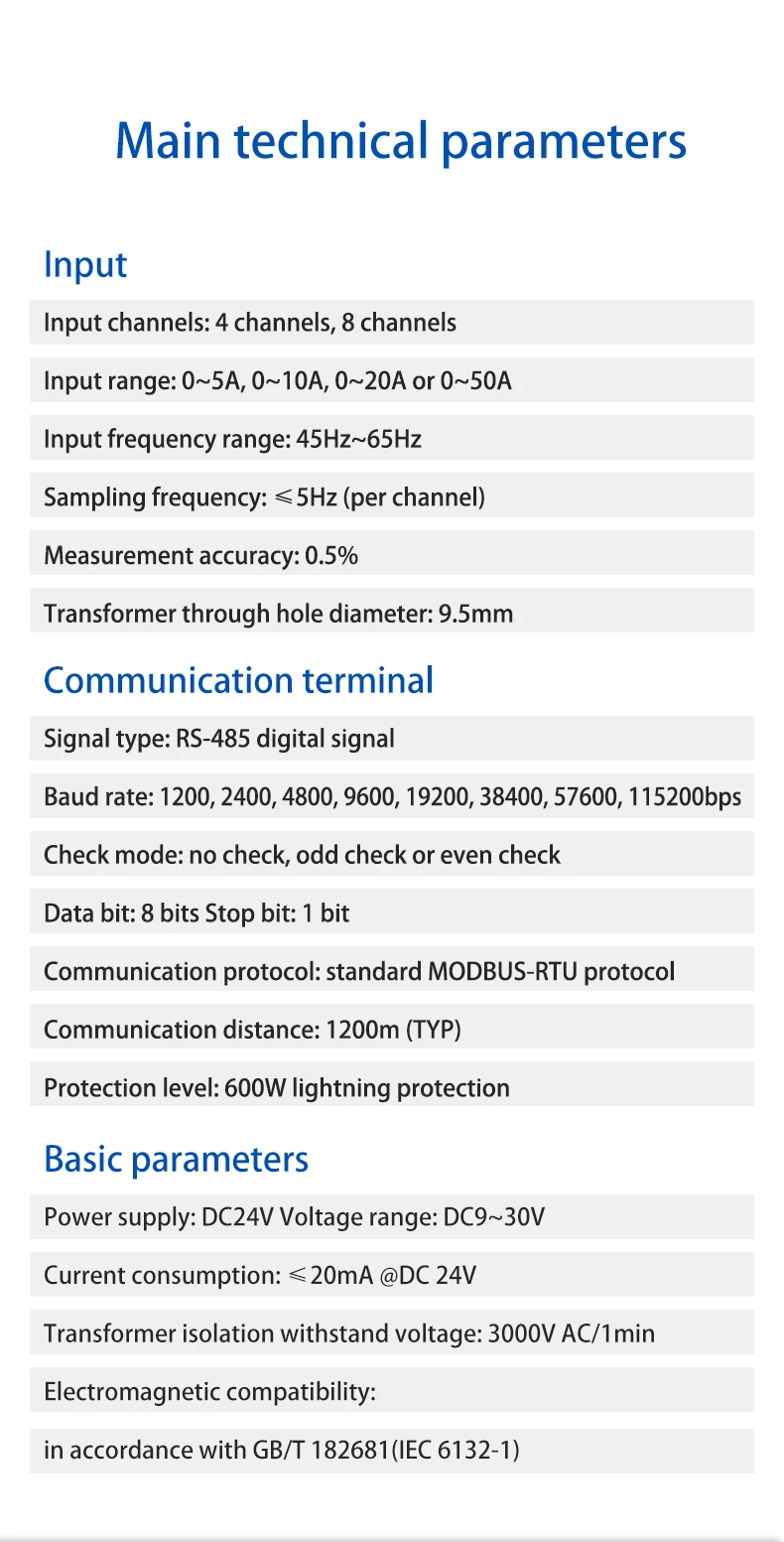

Main technical parameters
Input
Input channels: 4 channels, 8 channels
Input range: 0
5A, 010A, 020A or 050AInput frequency range: 45Hz~65Hz
Sampling frequency: ≤ 5Hz (per channel)
Measurement accuracy: 0.5%
Transformer through hole diameter: 9.5mm

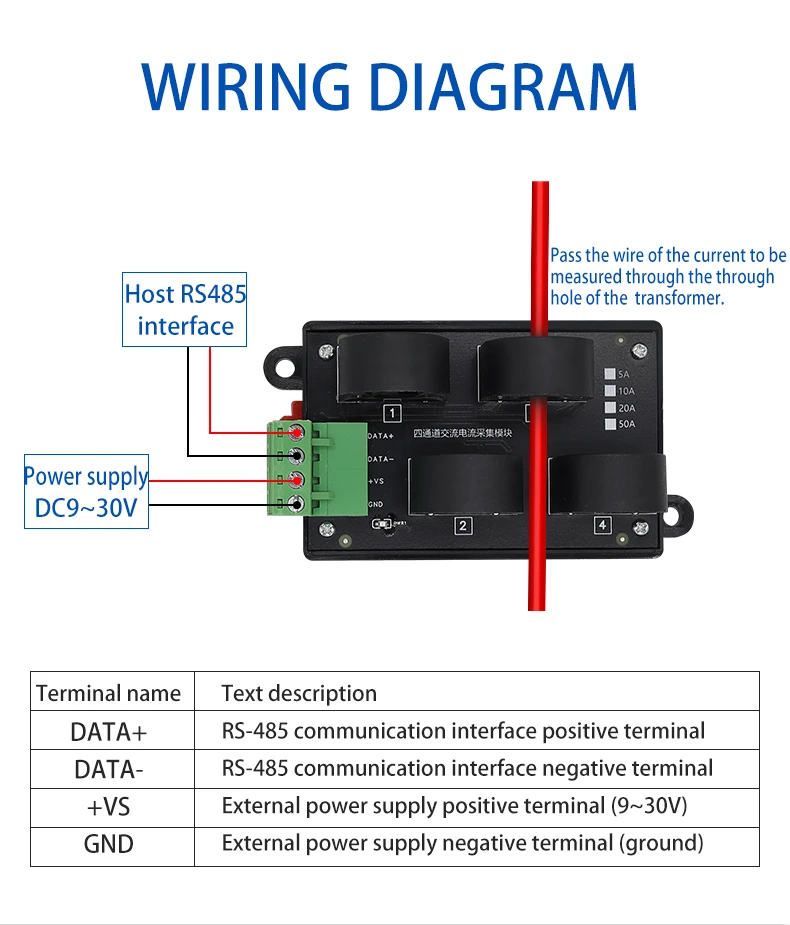

Communication terminal
Signal type: RS-485 digital signal
Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps
Check mode: no check, odd check or even check
Data bit: 8 bits Stop bit: 1 bit
Communication protocol: standard MODBUS-RTU protocol
Communication distance: 1200m (TYP)
Protection level: 600W lightning protection
Basic parameters
Power supply: DC24V Voltage range: DC9~30V
Current consumption: < 20mA @DC 24V
Transformer isolation withstand voltage: 3000V AC/1min
Electromagnetic compatibility:
in accordance with GB/T 18268.1 (IEC 6132-1)

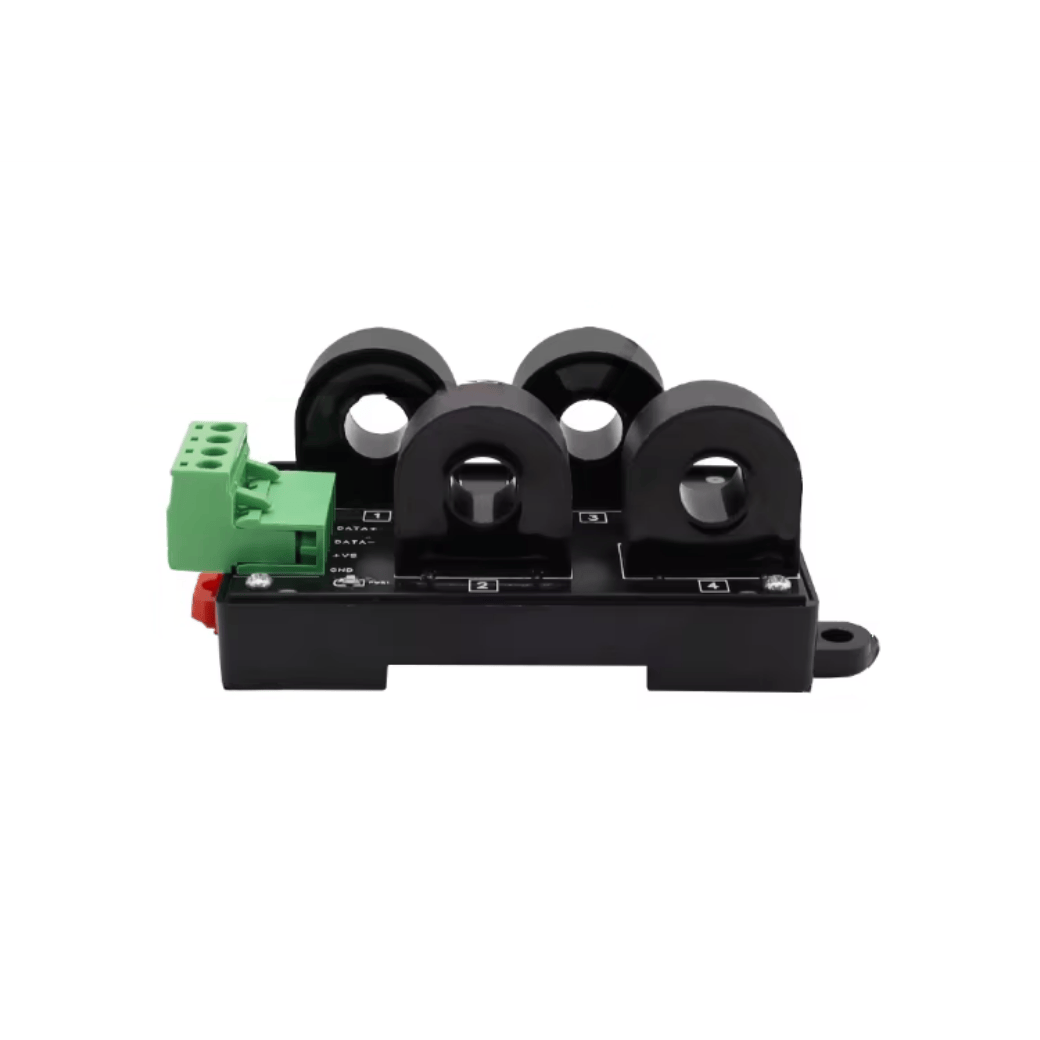

(4 Channel AC Current Sensor RS485 Output DIN Rail Mount)
Input channel | 4 channels (8 channel model also available) |
Input range | 0-5A / 0-10A / 0-20A / 0-50A |
Input frequency range | 45-65HZ |
Signal type | RS-485 |
Q&A: Main Technical Parameters
Q1. How many input channels does the device support?
A1. It supports 4 channels or 8 channels.
Q2. What are the available input ranges?
A2. The input ranges are 05A, 010A, 020A, or 050A.
Q3. What is the input frequency range?
A3. The input frequency range is 45Hz~65Hz.
Q4. What is the sampling frequency per channel?
A4. The sampling frequency is ≤ 5Hz (per channel).
Q5. What is the measurement accuracy?
A5. The measurement accuracy is 0.5%.
Q6. What is the diameter of the transformer through hole?
A6. The diameter is 9.5mm.
Q7. What type of signal is used for communication?
A7. The device uses an RS-485 digital signal.
Q8. What baud rates are supported?
A8. Supported baud rates are 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps.
Q9. What check modes are available?
A9. The options are no check, odd check, or even check.
Q10. What are the data bit and stop bit values?
A10. The data format is 8 bits data, 1 stop bit.
