Description:
  This is a stylish battery operated portable air quality monitor EPT01 with options of
     CO2
     Smoke
     Temperature
     Humidity
     Wifi+Mobile App.
  You can choose the options before purchase. It measures live CO2 gas concentration (NDIR based), Smoke (photo electric based), Temperature and Humidity and display in the stylish theme display with 4 levels of air quality index as Green, Yellow, Orange and Red. Also it displays the battery level and Wi-Fi Connectivity status. You can set alarm limit also, so once the set value reached you will get audible alarm, in case if wifi model you will get notification in mobile
Features
  Calibration automatically per 24 hours

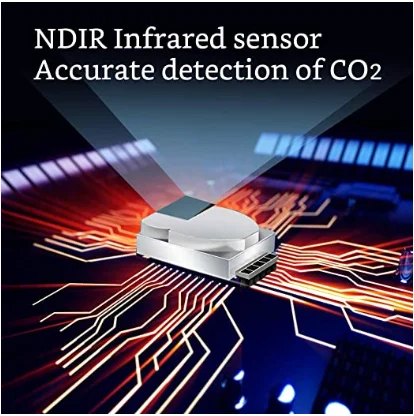

  NDIR based sensor for more accurate and sensitive
  Display real-time temperature and humidity
  Add the function of smoke alarm

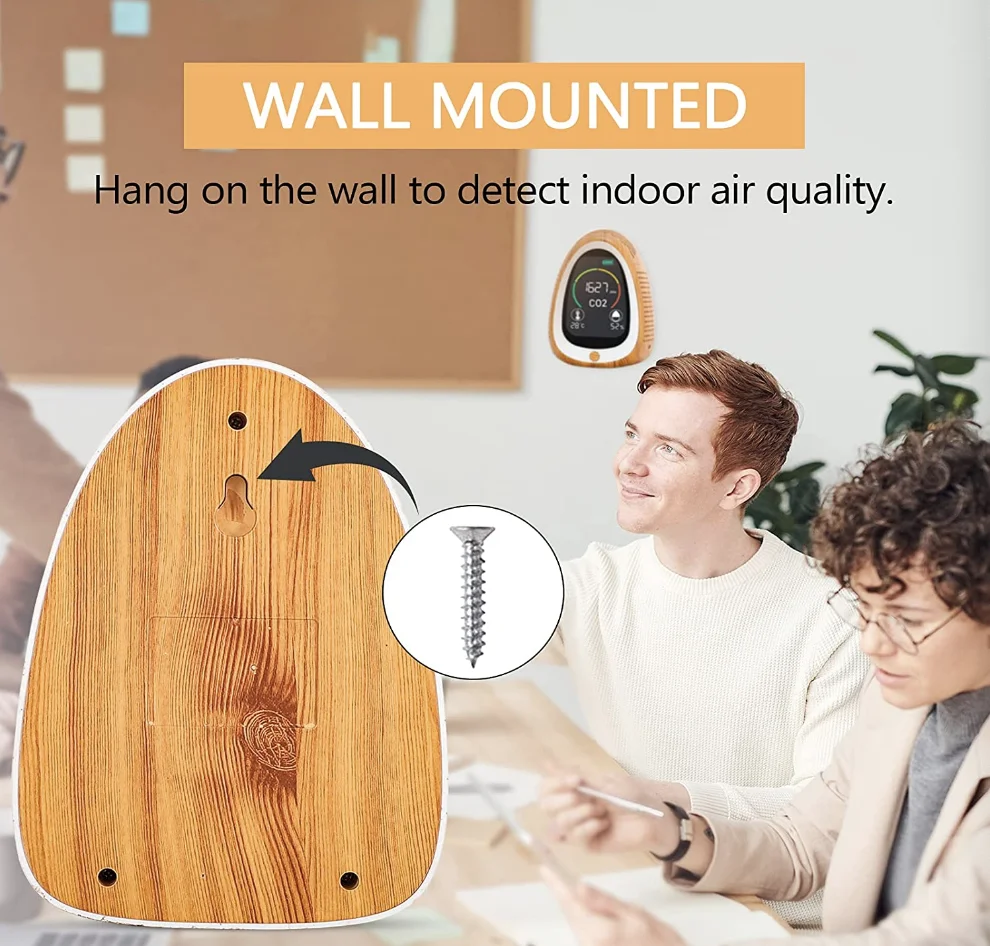

  Compitabl for both desktop and wall mount
  WiFi Mobile App
  Certificates: CE, roHS, FCC, UL217
  Customized Service According to your needs
Model to Choose
  The portable air quality monitor PT01 available with below options to choose:
| MODEL | FUNCTION | COLOR |
| ESPT01-A-W | CO2 + TEMPERATURE + HUMIDITY | White |
| ESPT01-B-W | CO2 + TEMPERATURE + HUMIDITY + WIFI | |
| ESPT01-C-W | CO2 + SMOKE + TEMPERATURE + HUMIDITY | |
| ESPT01-D-W | CO2 + SMOKE + TEMPERATURE + HUMIDITY + WIFI | |
| ESPT01-A-B | CO2 + TEMPERATURE + HUMIDITY | Black |
| ESPT01-B-B | CO2 + TEMPERATURE + HUMIDITY + WIFI | |
| ESPT01-C-B | CO2 + SMOKE + TEMPERATURE + HUMIDITY | |
| ESPT01-D-B | CO2 + SMOKE + TEMPERATURE + HUMIDITY + WIFI | |
| ESPT01-A-O | CO2 + TEMPERATURE + HUMIDITY | Wooden |
| ESPT01-B-O | CO2 + TEMPERATURE + HUMIDITY + WIFI | |
| ESPT01-C-O | CO2 + SMOKE + TEMPERATURE + HUMIDITY | |
| ESPT01-D-O | CO2 + SMOKE + TEMPERATURE + HUMIDITY + WIFI |
Specification
|
Product Name
|
Combo CO2 and Smoke Alarm Detector
|
|
Material
|
Fire resistant ABS+LCD
|
|
smoke sensor
|
Photoelectric smoke sensor
|
|
CO2 Sensor
|
NDIR Co2 sensor
|
|
Co2 Measure range:
|
400-5000ppm ±5%
|
|
Temperature Measuring Range
|
-20°-60°C ±2%
|
|
Humidity Measuring range
|
5%-95% ±5%
|
|
Smoke alarm
|
85dB (1-3M)
|
|
Smoke sensitivity
|
0.1% db/m-0.3 % db/m
|
|
Battery capacity
|
1400mAh
|
|
Resolution
|
1 PPM
|
|
Working temperature
|
0 – 50°C
|
|
Input Voltage
|
DC 5V
|
|
Power supply
|
Chargeable battery and 2M long USB
|
|
Warm-up time
|
＜ 7 seconds
|
|
Packaging details
|
Product size :102x52x140mm，
Product weight:320g Box size: 172x61x172mm Box weight: 335g Carton: Packaging: 20pcs/ CTN Carton size :640x190x355mm Carton weight: 6.5kg (20pcs) |
|
Color
|
White,Black,Original Wood
|
|
Customize
|
Wifi function to app, USB data save and transfer, interface content, brand logo, language, gift box and manual.
|
