Description:
  This is a stylish battery operated portable air quality monitor EPT01 with options of
     CO
     Smoke
     Temperature
     Humidity
     Wifi+Mobile App.
  You can choose the options before purchase. It measures live CO gas concentration meet ETL UL217 and UL 2034 standard certification, Smoke (photo electric based), Temperature and Humidity and display in the stylish theme display with 4 levels of air quality index as Green, Yellow, Orange and Red. Also it displays the battery level and Wi-Fi Connectivity status. You can set alarm limit also, so once the set value reached you will get audible alarm, in case if wifi model you will get notification in mobile even you are away from home.
Features
1. 8-10 years lifetime
2. High precision,repeatability,stability
3. Stabilized Electrochemical principal
4. Strong anti-interference ability
5. Accord with the product requirements of JJG915-2008 verification regulation of carbon monoxide detection alarm.
Model to Choose
  The portable air quality monitor PT01 available with below options to choose:
| MODEL | FUNCTION | COLOR |
| PT03-A-W | CO + SMOKE + TEMPERATURE + HUMIDITY | White |
| PT03-B-W | CO + TEMPERATURE + HUMIDITY + WIFI | |
| PT03-D-W | CO + SMOKE + TEMPERATURE + HUMIDITY + WIFI | |
| PT03-A-B | CO + SMOKE + TEMPERATURE + HUMIDITY | Black |
| PT03-B-B | CO + TEMPERATURE + HUMIDITY + WIFI | |
| PT03-D-B | CO + SMOKE + TEMPERATURE + HUMIDITY + WIFI | |
| PT03-A-O | CO + SMOKE + TEMPERATURE + HUMIDITY | Wooden |
| PT03-B-O | CO + TEMPERATURE + HUMIDITY + WIFI | |
| PT03-D-O | CO + SMOKE + TEMPERATURE + HUMIDITY + WIFI |
Specification
Product descriptions from the supplier
Product Specification
|
Name:
|

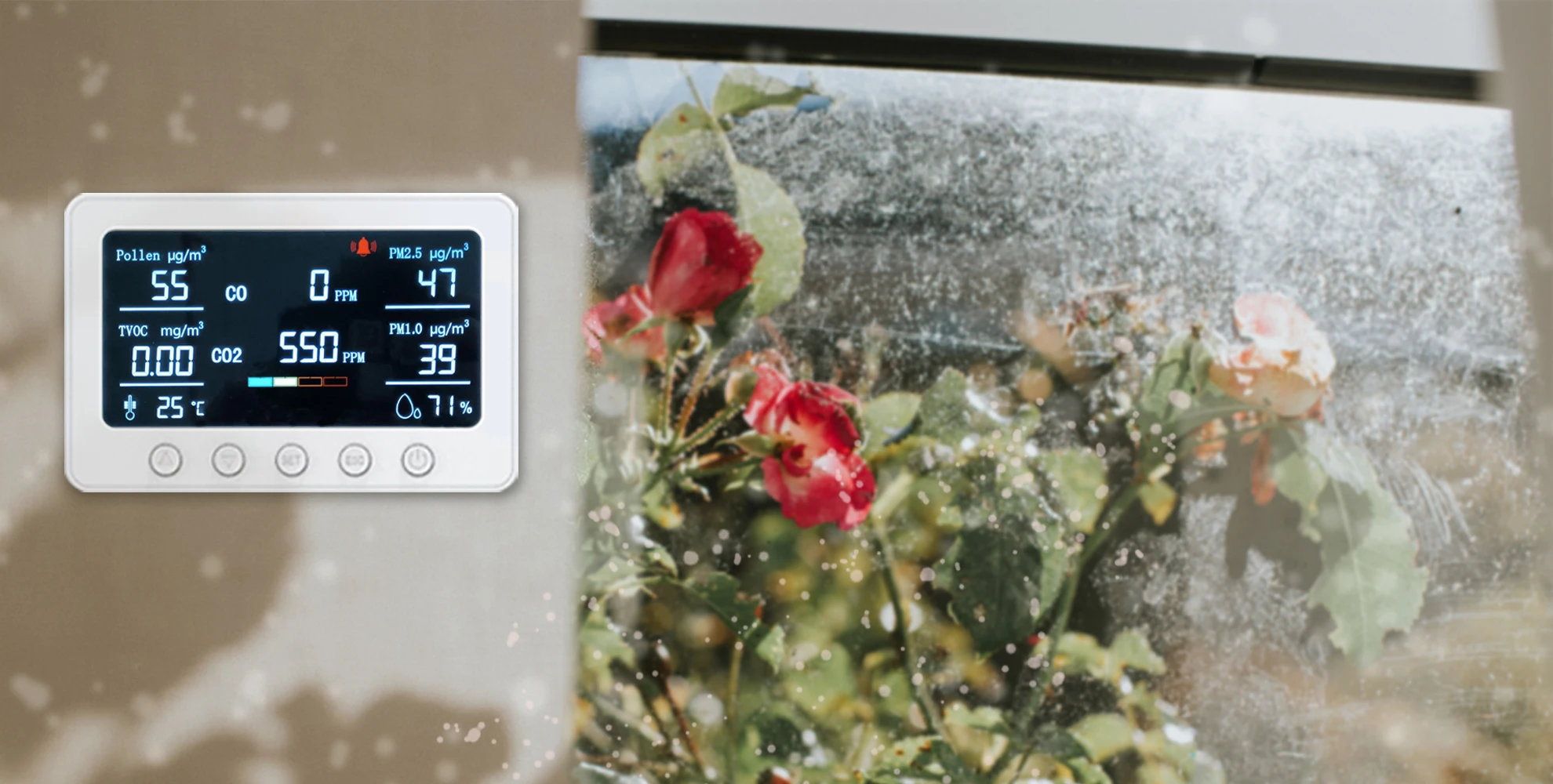

Smart indoor Multiple Air Quality Monitor
|
|
|
Model:
|
PT02-Plus
|
|
|
Intended use
|
Detect and digitally real- timely monitor:Â (CO2, CO, Pollen,
PM1.0, PM2.5, TVOC, Humidity |
|
|
Measuring Object
|
Measuring Range
|
Resolution
|
|
Co2
|
400-5000PPM
|
1 PPM
|
|
Co
|
0-999PPM
|
1 PPM
|
|
TVOC
|
0～9.99mg/m3
|
0.05 mg/m3
|
|
PM2.5
|
0~100 μg/m3            101-500μg/m3
|
1 μg/m3
|
|
PM1.0
|
||
|
Pollen
|
0～500μg/m3
|
1 μg/m3
|
|
Temperature Measuring Range:
|
-20~60℃
|
±2℃
|
|
Humidity Measuring range :
|
5% ~ 95% RH
|
±5%RH
|
|
                          Co2 indicator
|
0-499PPM — Green light bar
|
500-999PPM — Yellow light bar
|
|
1000-1499PPM — Orange light bar
|
over 1500PPM –Red bar
|
|
|
TVOC
|
over 0.5mg/m3–buzzer alarm
|
|
|
PM1.0
|
                                                   over 75μg/m3 –buzzer alarm
|
|
|
PM2.5
|
||
|
Material :
|
ABS+LCD
|
|
|
Power supply :
|
DC12V adaptor (US/EU/EPS）
|
|
|

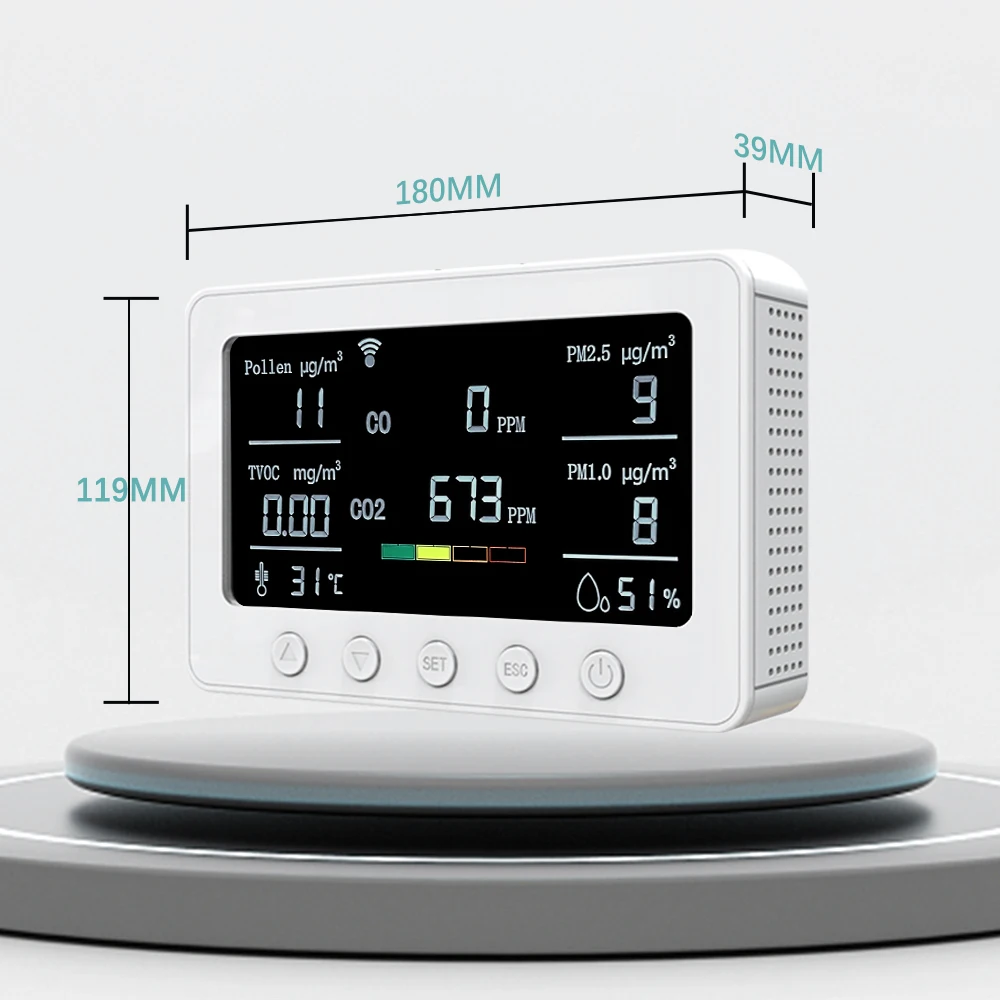

Product weight and size:
|
500g / 180mm( L )* 39mm( W )* 119mm( H )
|
|
|
Warm-up time
|
< 7 seconds
|
|
|
                                                  Sensor
|
NDIR Co2 sensor
|
|
|
Laser dust sensor
|
||
|
Laser TVOC sensor
|
||
|
Temperature and humidity sensor
|
||
|
Signal output
|
Support data export/ data logger by RS485/Relays
|
|
|

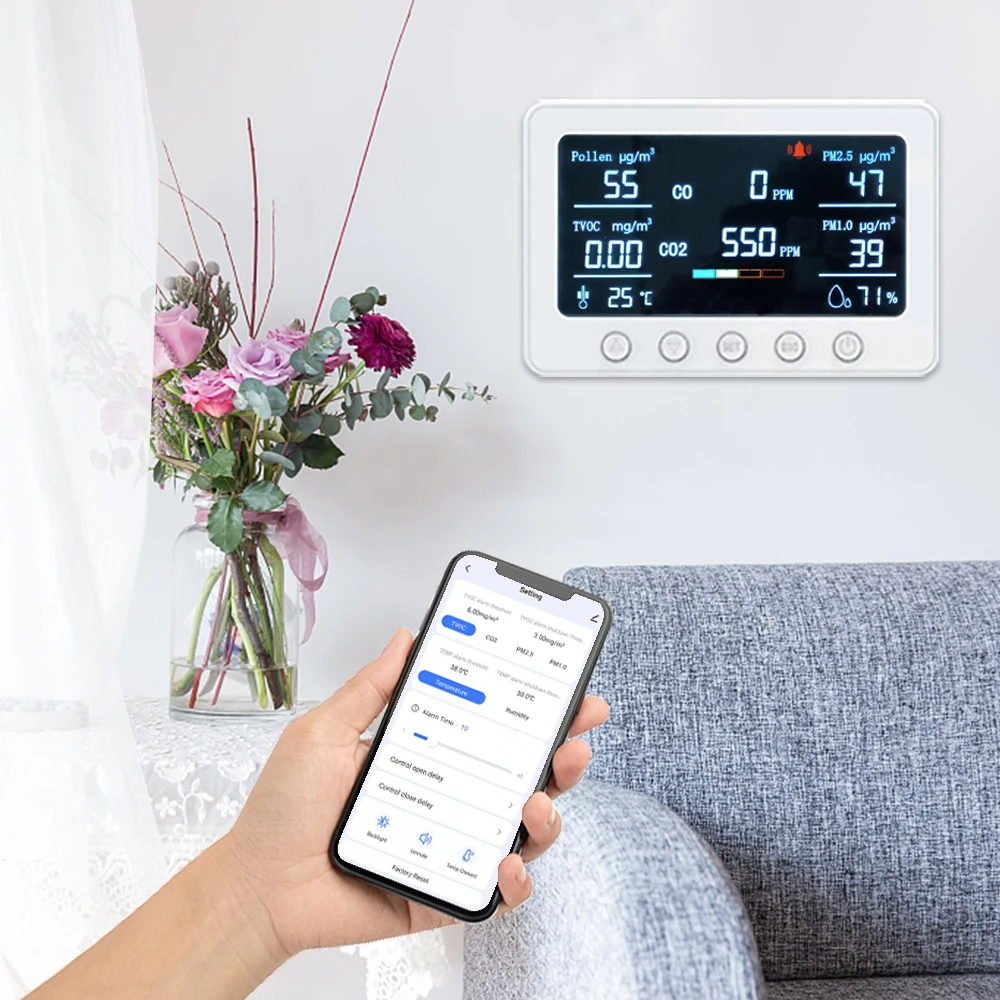

App controller
|
Tuya smart life app
|
|
