Programmable Analog 0-10V 0-20mA 4-20mA 2-10V Display Meter Panel-mounted High Precision

XDB-BSX-011\012\013 ( Option [Standard type]has no relay inside and no RS485 MODBUS functions, pls do note that. )

Main Features of analog signal process indicator

• Standard Type: Default 0-10V 0-20mA 2-10V 4-20mA display meter. RS485 port type and Relay output type are available.

• Default Standard & RS485 Port Type: No relay inside; operating power supply DC 6–25V, power consumption 24V/40mA.

• Supports 1-channel current or voltage signal input, selectable as needed.

• Input Impedance: Voltage >30kΩ, current <250Ω.

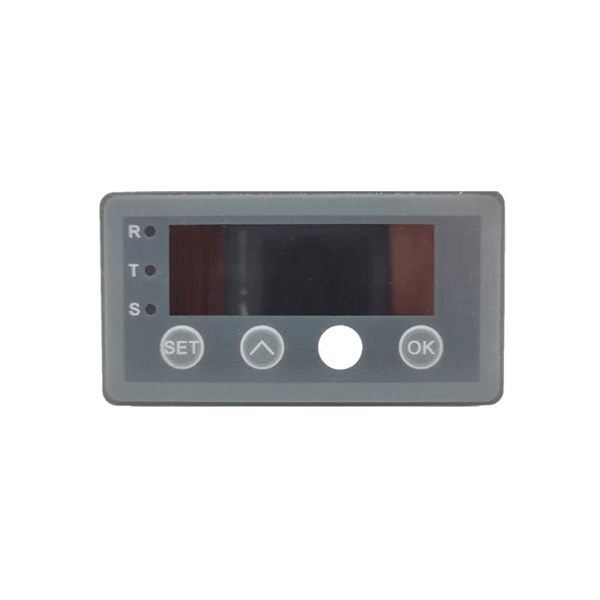

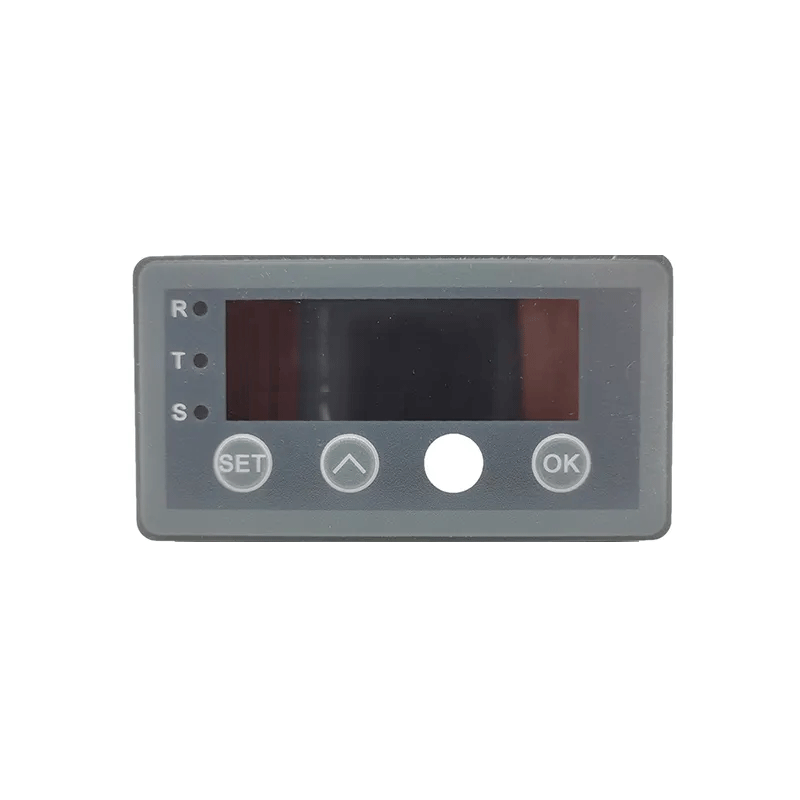

• Comes with a 0.56-inch 4-digit LED tube display.

• Programming: All parameters can be set using 3 buttons, making it convenient to operate.

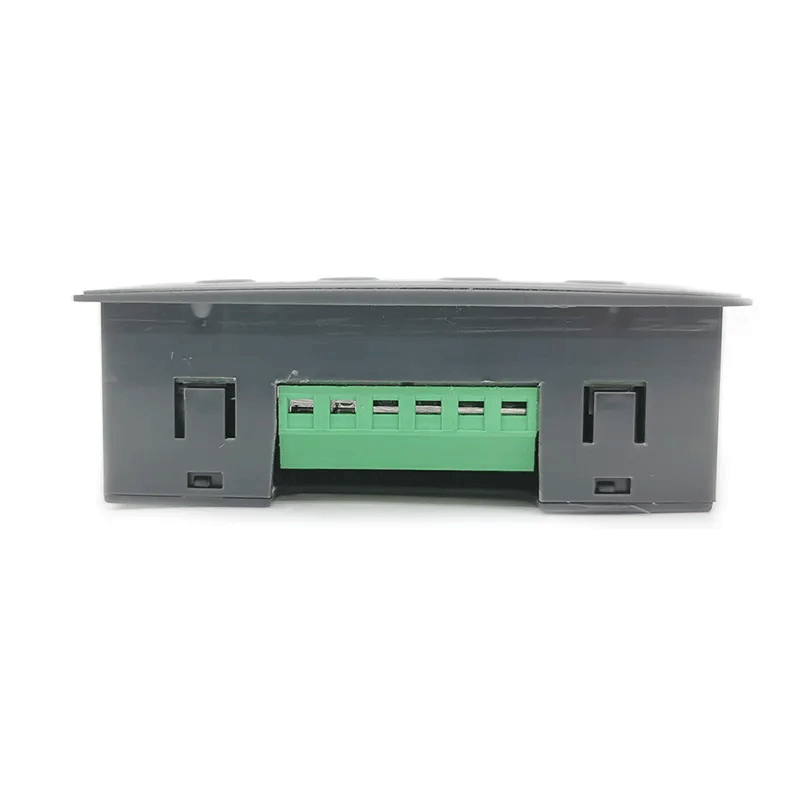

• Dimensions: Front view 79×43×25mm; installation cut-out 76.5×39.5mm.

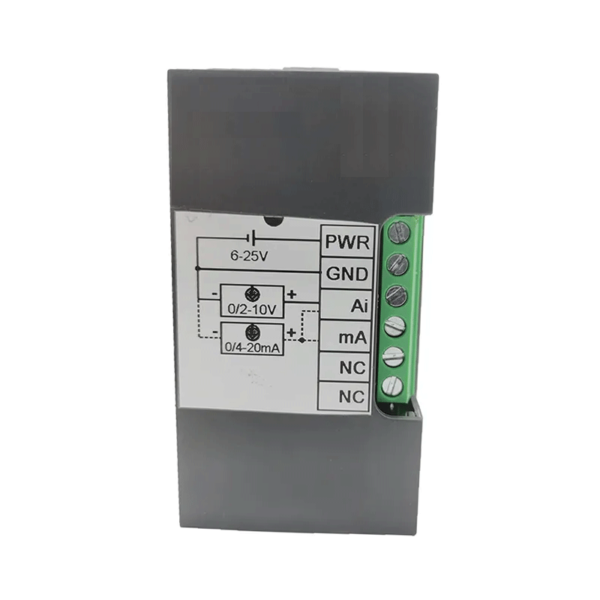

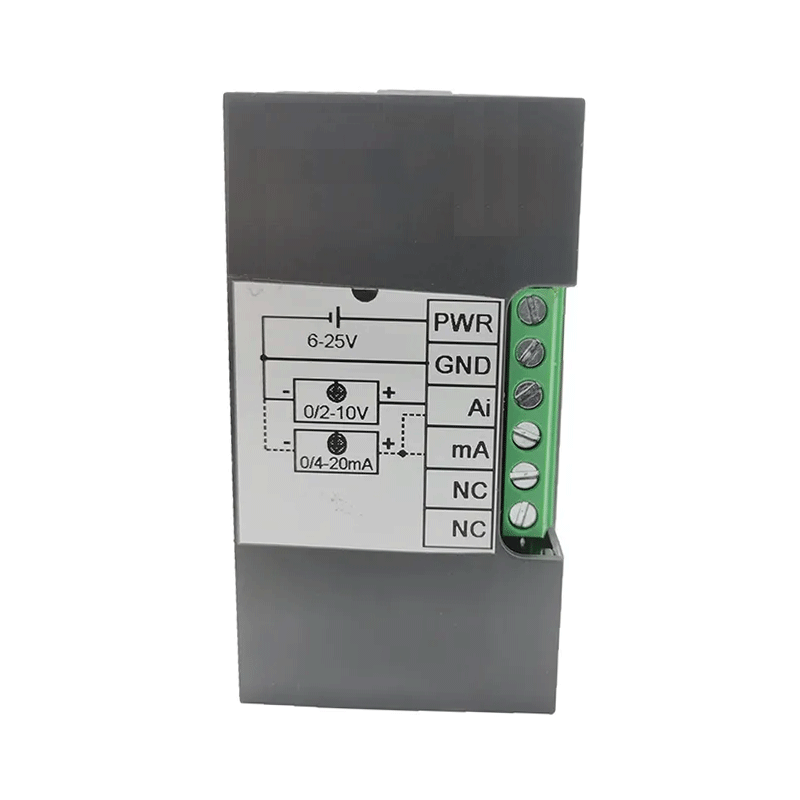

Referential Wiring Circuits:

Analog signal process indicator

Q&A for Display Meter (Default Standard & RS485 Port Type)

Q1: What is the power supply requirement for this display meter?
A: It operates on DC 6–25V with a typical power consumption of 24V/40mA.

Q2: Does this product support both current and voltage signal inputs?
A: Yes. It supports a 1-channel current or voltage signal input, and you can select the mode as per your requirement.

Q3: What is the input impedance?
A: Voltage input impedance is >30kΩ, while current input impedance is <250Ω.

Q4: What type of display does it use?
A: It comes with a 0.56-inch 4-digit LED tube display, which is bright and easy to read.

Q5: Can I program the parameters easily?
A: Yes, all parameters are programmable through 3 user-friendly buttons, making setup convenient.

Q6: What are the dimensions of the device?
A: The front view size is 79×43×25mm, and the installation cut-out size is 76.5×39.5mm.
