PARAMETERS:

Output signal	Relay
Input	0-10V 4-20mA 0-20mA 2-10V
Accuracy	0.01
Display Type	4-digit LED display
Installation method	Standard snap-in installation
Operating temperature	-20-+65℃
Supply voltage	8-25VDC
Dimensions	79x43x25mm
Cut-out size	76.6×39.5mm
Communication function	Support RS485 communication interface, adopt standard MODBOS RTU communication protocol

PRODUCT DESCRIPTION: (Analog signal process indicator with relay output)

Programmable Analog 0-10V 0-20mA 4-20mA 2-10V Display Meter Panel-mounted High Precision

Main Features

• Standard Type: Default 0-10V 0-20mA 2-10V 4-20mA display meter with Relay output type are available.

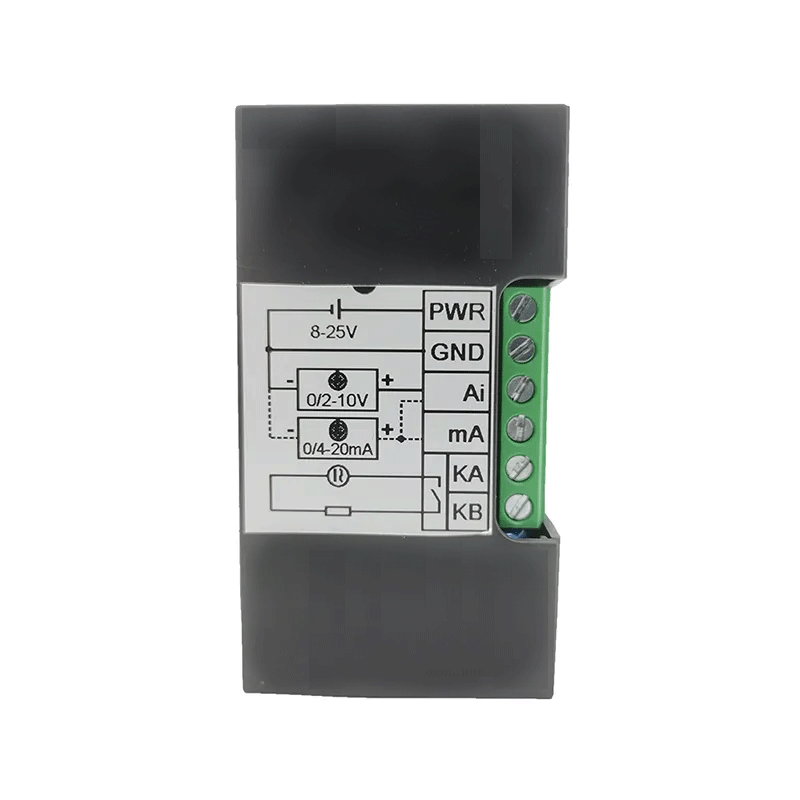

Relay output type: operating power supply DC 8-25V, power consumption 24V/50mA; have polarity reverse and anti-surge protection functions.

Signal Input: 1-channel current or voltage input, selectable.
Input Impedance: Voltage >30kΩ; current <250Ω.

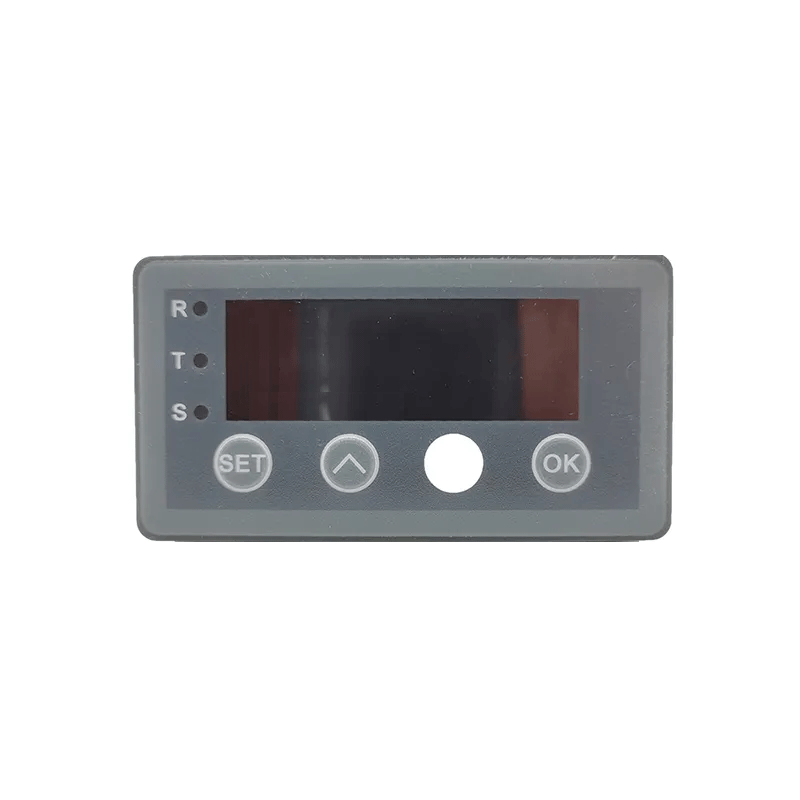

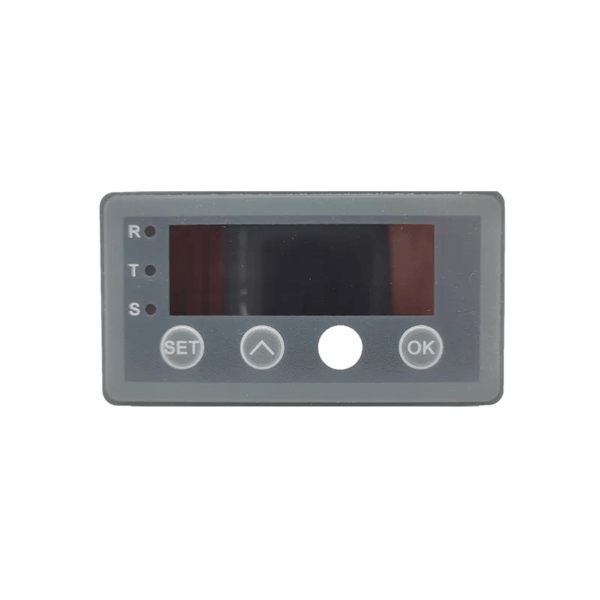

Features a 0.56-inch 4-digit LED tube display.
User-Friendly Operation: Parameters can be programmed through 3 buttons.
Relay Output Type: Includes 1-channel normally open relay output with load capacity 3A (30VDC/3A, 250VAC).

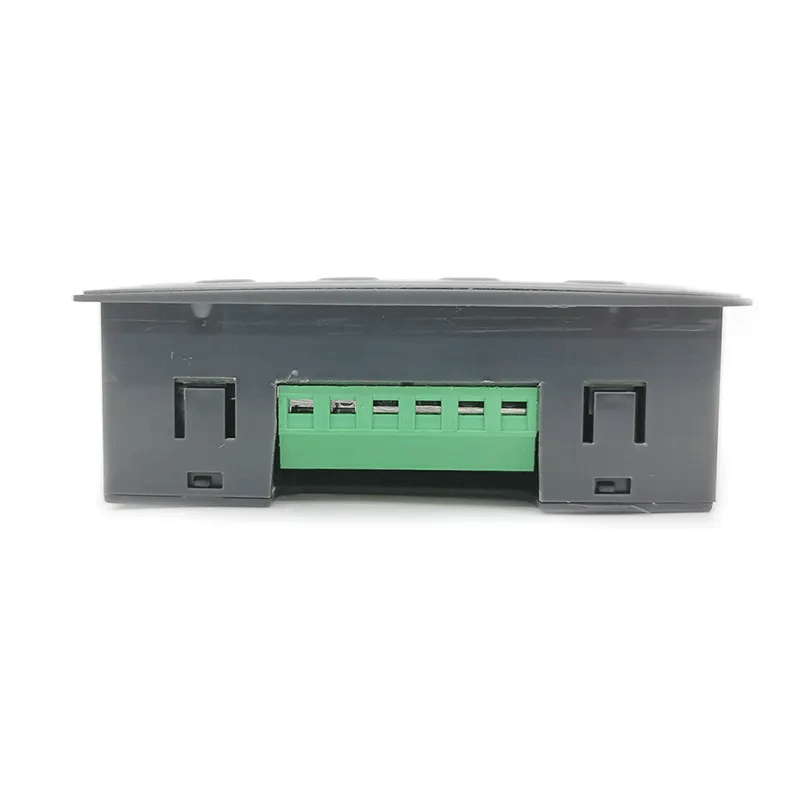

Dimensions: Front view 79×43×25mm; installation cut-out 76.5×39.5mm.
For relay output type, status and condition parameters are fully programmable.
