Product Description

(Embedded Mini Industrial PC IPC6800)

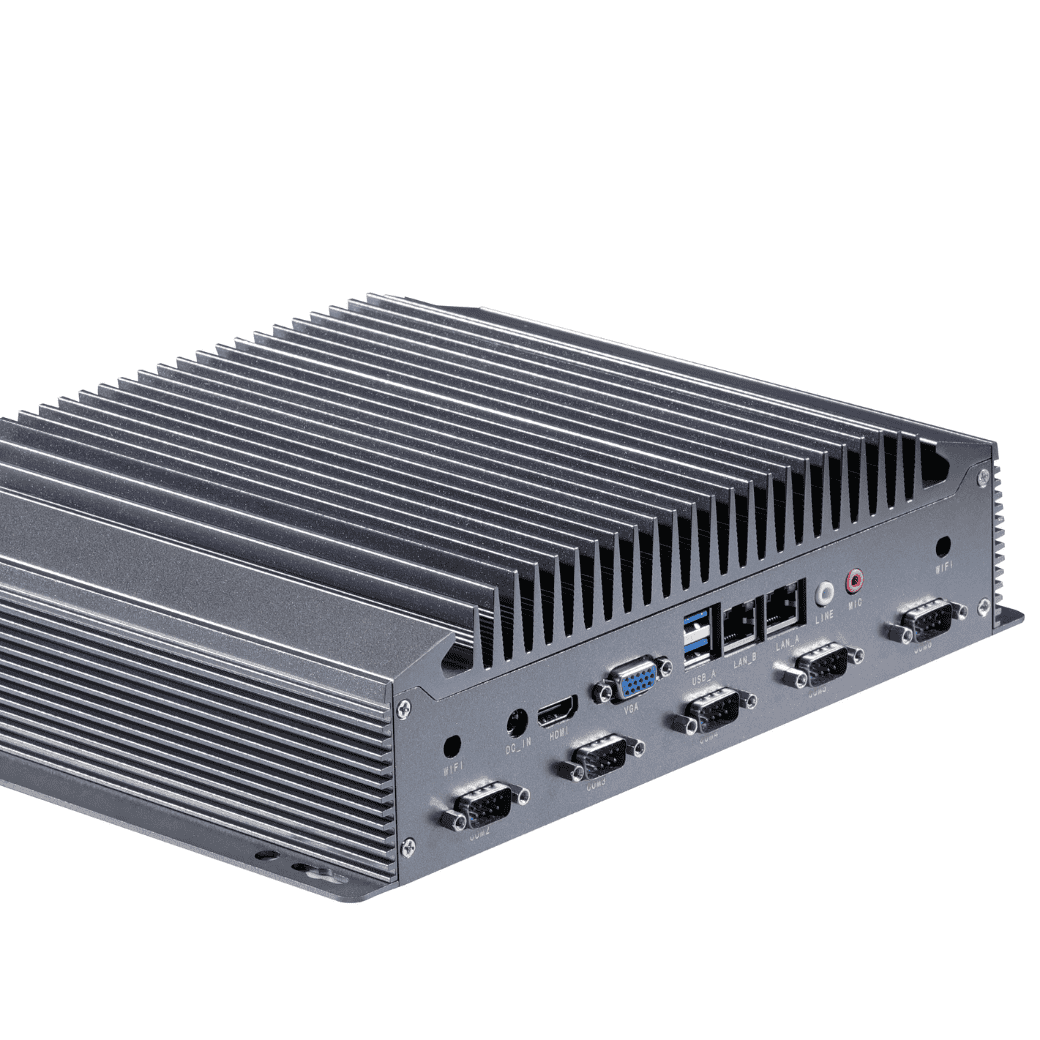

This industrial-grade mini PC combines compact design, reliable performance, and flexible expandability. Measuring 286mm x 205mm x 76.3mm, it supports Intel Skylake, Kabylake, and Kaby Lake R processors (i3/i5/i7) paired with a high-speed chipset and DDR3/DDR4 memory slots for smooth multitasking.

Equipped with Intel HD510/520/610/620 graphics, it delivers sharp visuals with HDMI 1.4 supporting 4K@30Hz and VGA up to 1920×1200@60Hz, making it suitable for digital signage, kiosks, and industrial display systems.

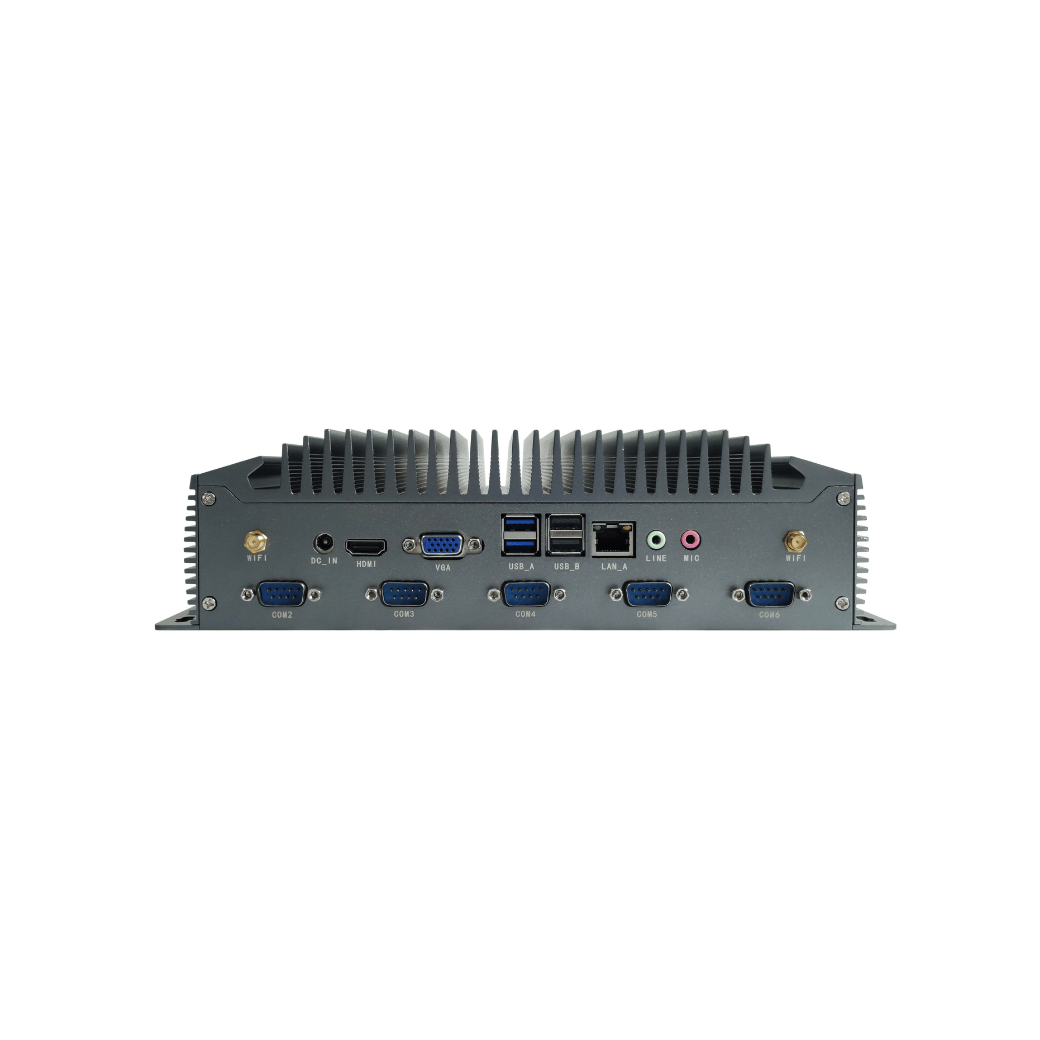

Connectivity is robust with Realtek or Intel Gigabit LAN options, Mini-PCIe slot for WiFi/3G/4G, multiple USB3.0/USB2.0 ports, COM ports (RS232/RS422/RS485), and SIM card slot for mobile networking. Storage is versatile with SATA, mSATA, and M.2 interfaces.

Designed for harsh environments, it operates from -20°C to 60°C with up to 95% humidity tolerance. The AMI BIOS, watchdog timer, and OS support for Windows 7/8/10 and Linux ensure reliability and flexibility for embedded and industrial applications.

Product Specification – Embedded Mini Industrial PC IPC6800

Dimensions:

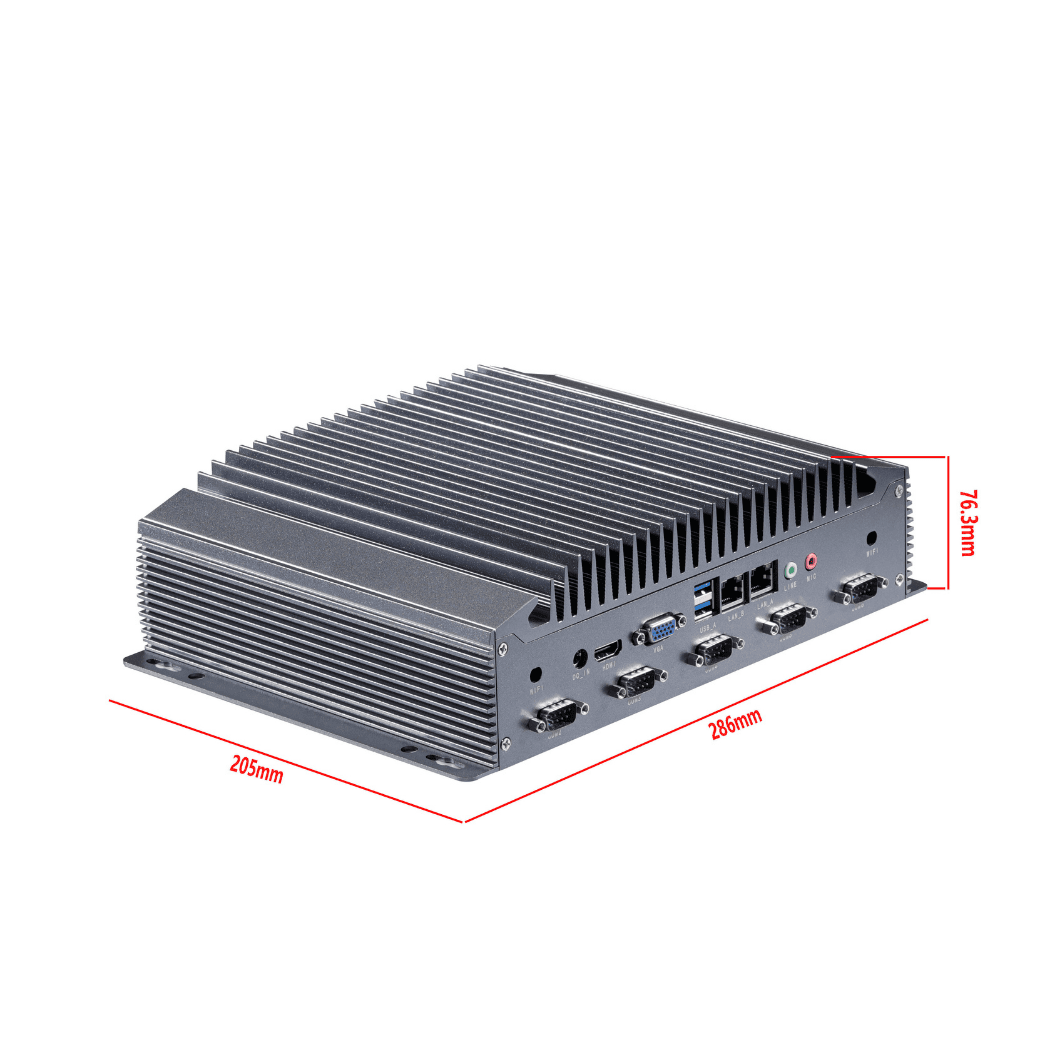

286mm (L) × 205mm (W) × 76.3mm (H)

Processor (CPU):
Supports Intel® Skylake, Kabylake, and Kaby Lake R platforms (i3, i5, i7 series).

Chipset:
High-speed Skylake / Kabylake chipset.

Power Supply:

• 1 × DC_IN, supports 12V/19V input (Ø2.5mm DC head).
• Typical motherboard power consumption: 30W–60W.
• Recommended: 12V7A or higher-rated power supply.

Memory:
2 × NB-DDR3/DDR4 RAM slots.

Graphics & Display:

• Intel® HD Graphics (HD510/520 for 6th Gen, HD610/620 for 7th/8th Gen).
• Supports single display, dual display replication, and dual display expansion (including DOS mode).
• 1 × VGA DB15 (max resolution: 1920×1200 @60Hz).
• 1 × HDMI 1.4 (supports 4K 4096×2160 / 3840×2160 @30Hz).

Networking:

• Default: 1 × LAN (Realtek 8111H Gigabit Ethernet, Wake-on-LAN, PXE boot).
• Optional: 1 × LAN_B (Intel I219-LM Gigabit Ethernet, Wake-on-LAN, PXE boot).

Expansion Slots:

• 1 × Mini-PCIe (supports WiFi/3G/4G modules).
• 1 × SATA1 (SATA 3.0, up to 6.0Gbps).
• 1 × SATA2 (SATA 3.0, up to 6.0Gbps).
• 1 × mSATA (MSATA 3.0 support).
• 1 × M.2 (supports M.2 2280 by default, optional 2242, SATA protocol).

Audio:

• Integrated Realtek ALC662 HD audio decoder, 6-channel high-fidelity audio controller.
• Ports:
  • 1 × Line Out (green, audio output)
  • 1 × Mic In (red, microphone input)

USB Interfaces:

• 2 × USB 3.0 (maximum 5Gbps).
• 4 × USB 2.0 (maximum 480Mbps).

Switch & Control:

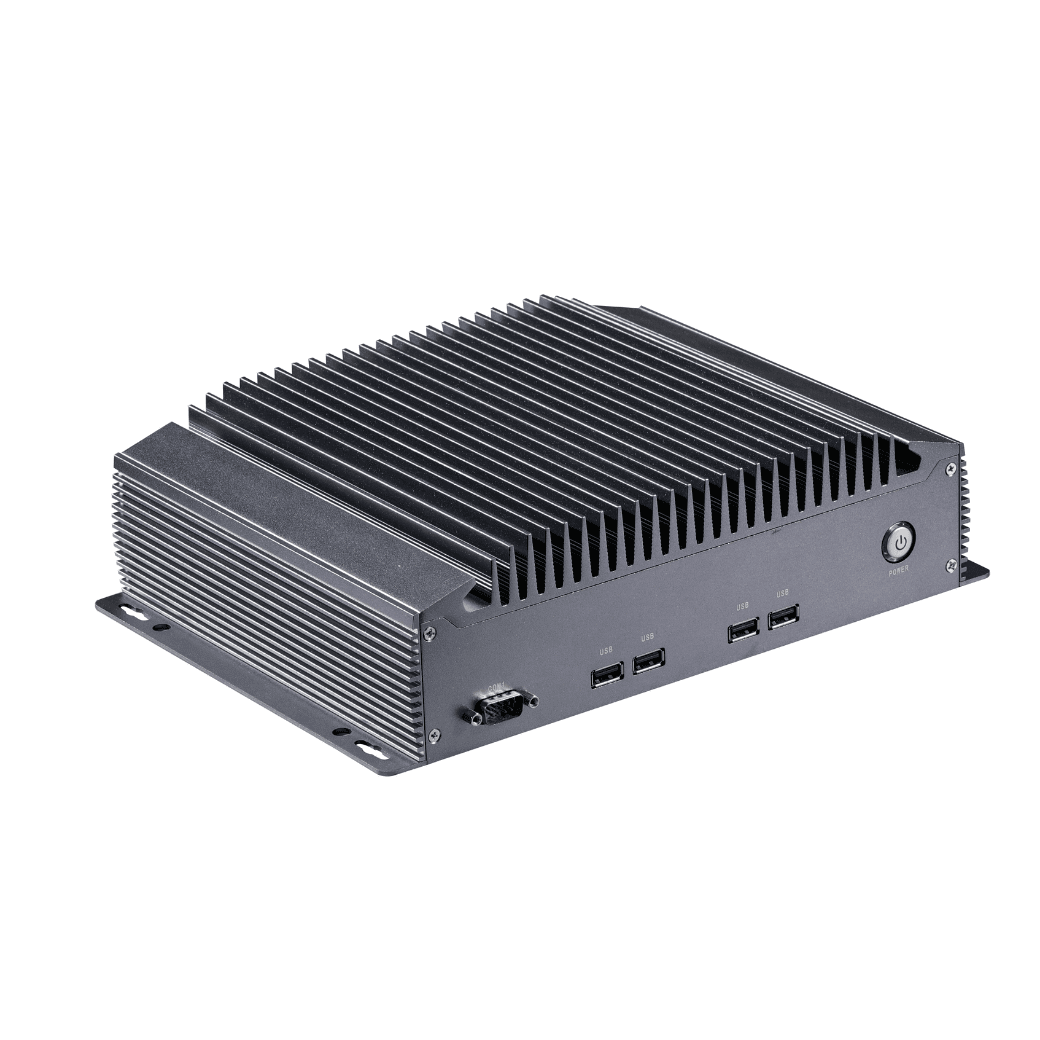

• 1 × Power switch button.
• 1 × AUTO_SW (hardware power control plug interface).

Other I/O Ports:

• COM1/COM2: RS232 (default), optional RS422/RS485.
• COM3–COM6: RS232.
• 1 × SIM card slot (required for 3G/4G usage).

Environmental Conditions:

• Operating temperature: -20°C ~ 60°C.
• Operating humidity: 5% ~ 95% RH (non-condensing).

BIOS:
AMI BIOS with support for power-on, RTC, and remote equipment management.

Watchdog Timer:
256-level programmable watchdog, hardware reset support (0–255 seconds).

Operating System Compatibility:
Supports Windows 7, Windows 8, Windows 10, and Linux.
