Product Description


Parameter of methane gas
|
Product type
|
RS-FPCA- gas detector
|
|||
|
Explosion proof grade
|
Exd ⅡC T6 Gb
|
|||
|
Response time
|
<30S
|
|||
|
Power supply
|
DC24V±10%
|
|||
|
Working temperature
|
-20℃~50℃
|
|||
|
Working humidity
|
0-95%RH (no dew)
|
|||
|
Output signal
|
RS485
|
|||
|
Installation method
|
Wall-mounted
|
|||
|
Shell material
|
Aluminum
|
|||
|
Dimensions
|
190*150*95mm(L*W*H)
|
|||
|
Weight
|
≤ 1.6kg
|
|||

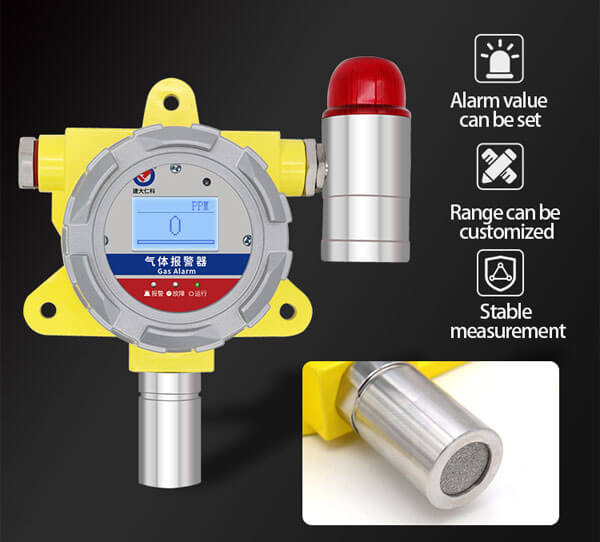

Feature of Explosion proof sulfer dioxide so2 gas detector remote 0-20 ppm
-
The device is equipped with imported first-line, big-brand electrochemical sensors, ensuring stability and durability.
-
Remote infrared control technology allows parameter modification without the need for disassembly.
-
It supports multi-gas detection, and the detection range can be customized as required.
-
A standard RS-485 communication interface with ModBus-RTU protocol enables configurable address and baud rate, supporting communication distances of up to 2000 meters.
-
An optional high-quality LCD display allows values to be viewed directly on site and remains clearly visible even at night.
-
The device supports a 10–30V DC wide voltage power supply, making it compatible with various on-site DC sources.
-
Designed with a wall-mounted waterproof case, the gas analyzer is easy to install, offers a high protection level, and performs reliably even in harsh environments.

|
No.
|
Description
|
|
1
|
Return
|
|
2
|
Enter
|
|
3
|
Up key
|
|
4
|
Down key
|
|
5
|
Left shift
|
|
6
|
Right shift
|
|
7
|
OFF
|
|
8
|
ON
|
Measurable Gas Meter
|
Detected gas
|
Detecting scope
|
Resolution
|
Response time
|
Accuracy
|
|
O2
|
0-30%VOL
|
0.1%VOL
|
≤10s
|
±2%(F.S)
|
|
H2S
|
0-100PPM
|
1PPM
|
≤35s
|
±2ppm or ±10%
|
|
CH4
|
0-100%LEL
|
1%LEL
|
≤15s
|
±5%(F.S)
|
|
CO
|
0-1000PPM
|
1PPM
|
≤30s
|
±5ppm or ±10%
|
|
NO2
|
0-20PPM
|
0.1PPM
|
≤30s
|
±5%(F.S)
|
|
SO2
|
0-20PPM
|
0.1PPM
|
≤45s
|
±5%FS or ±10%
|
|
H2
|
0-1000PPM
|
1PPM
|
≤70s
|
±5%(F.S)
|
|
NH3
|
0-100PPM
|
1PPM
|
≤90s
|
±8%
|
|
O3
|
0-100PPM
|
1PPM
|
≤30s
|
±6%FS(@50ppm,25℃,50%RH)
|
