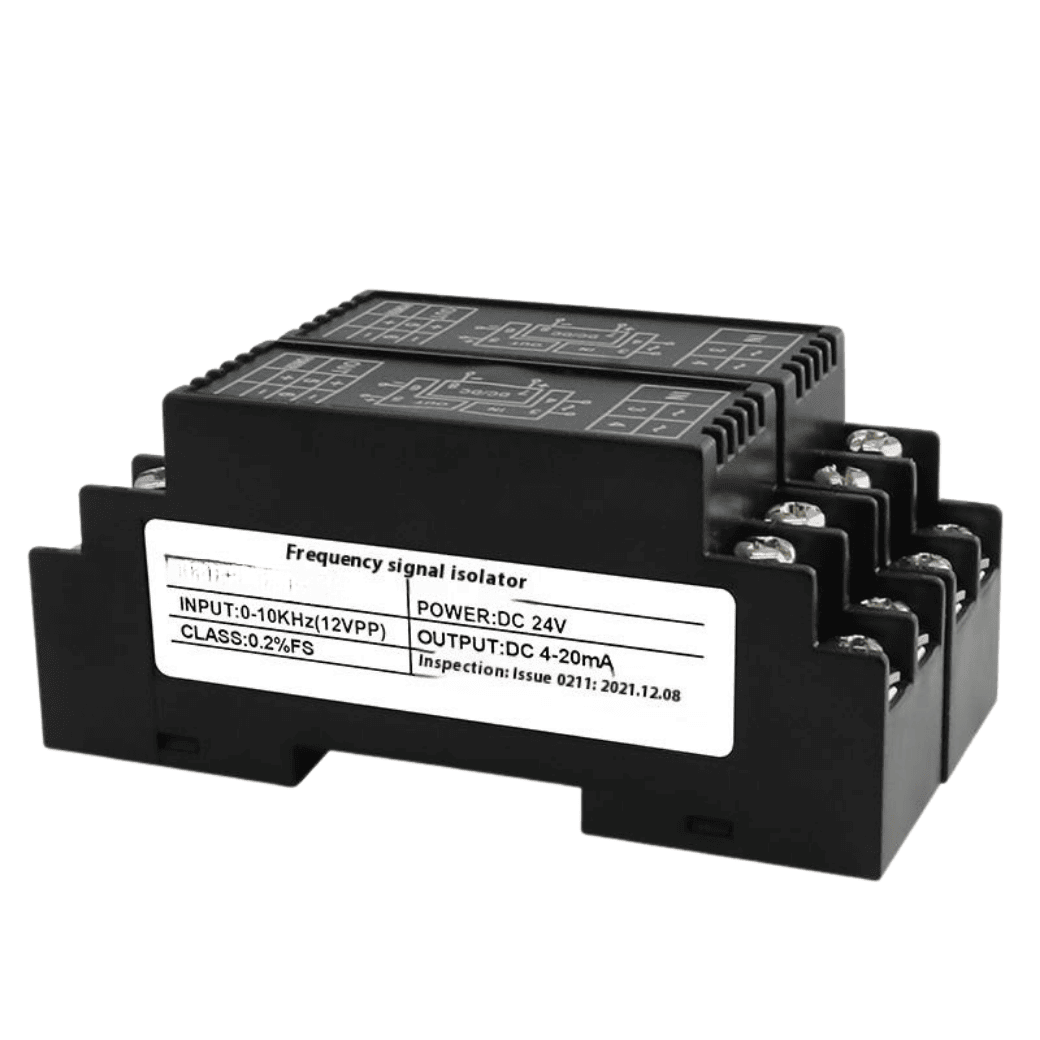

Frequency to Current Converter

This is a DIN ramil mount based, frequency signal converter, which

isolate and convert industrial site frequency signals into standard signals

such as 4-20mA and 0-5V etc

MAIN TECHNICAL PARAMETERS

Input

Signal type: Pulse square wave or sine wave

Frequency range:1Hz-100KHz(Signals below 1Hz are cut off as 0Hz)

Customizable 0. 1Hz-100KHz

Level:VL≤1V;4V≤VH≤12V

Output

Output signal:4-20mA;0-20mA;0-5v;0-10v

Output load resistance: RL≤500Ω（Output is current signal）

RL≥10KΩ（Output is voltage signal）

Basic Parameter

Power supply: DC24V±10%

Consumption current: ≤50mA (1 IN 1 OUT, DC24V,when 20mA output)

Basic accuracy: 0. 1%F.S

Temperature drift:0 .005%F.S/℃（-20℃~+55℃）

Response time:≤0 .5S(0-90%)(TYP)

Insulation strength:1500VAC/1min(Between input,output and power)

Insulation resistance:≥100MΩ(Between input ,output and power)

Working temperature range:-20~+55℃

Electromagnetic Compatibility: According to GB/T 18268.1(IEC61326-1)

Applicable Field Equipment: Frequency signal source
