Product Description

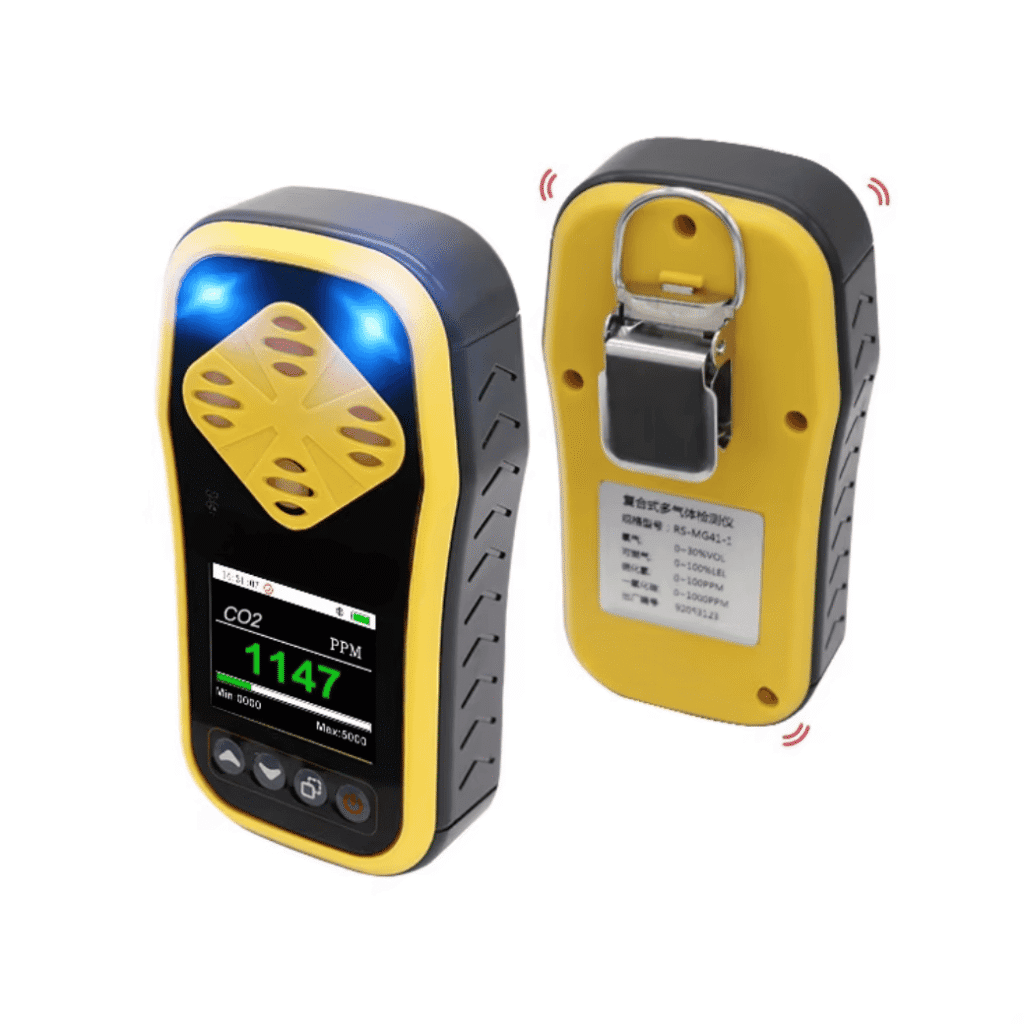

(Handheld carbon dioxide co2 gas meter 0-5000ppm)
RS-MG41-CO2-EX CO2 meter is easy to use and maintain, and meet the requirements of high-reliability equipment for industrial site safety monitoring. The shell is made of high-strength engineering plastics and composite non-slip rubber, which has high strength, good hand feeling, and is waterproof and dustproof.
CO2 detector Feature：
1. The co2 detector uses NDIR sensor, which has excellent sensitivity and repeatability 2. High-definition color screen design, easy to check gas status 3. High and low limit alarm values can be set 4. Full-function self-test, the co2 detector adopts three-level sound and light vibration alarm 5. Shortcut keys to quickly turn on and off the sound alarm and storage mode 6. Store up to 100,000 data, with the software to view historical data at any time 7. Large-capacity battery, the co2 detector can be used continuously for at least 8 hours in constant light mode
Measuring range | 0~5000ppm |
Resolution | 1ppm |
Repeatability | ≤2% |
Precision | ±(40ppm+ 3%FS) (25℃) |
Stability | ≤2%FS |
Response time | Diffusion type≤60S |
Insulation resistance | ≥20MΩ |

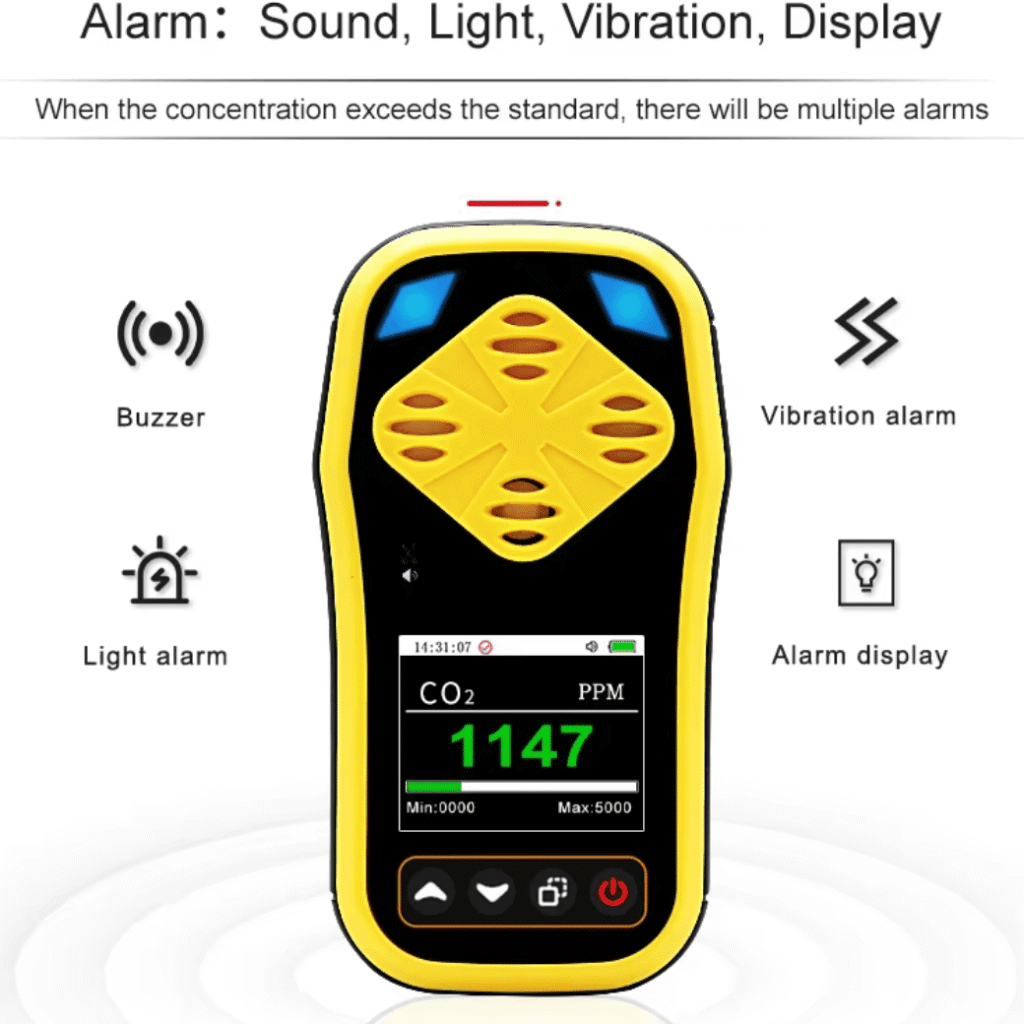

Alarm function | Sound, light, vibration |
Working environment | Temperature -10℃-50℃; humidity<95%RH without condensation |
Power supply | DC3.7V (Lithium battery capacity 3000mAh) |
Charging time | 6h-8h |
Standby time | More than 8h continuous |

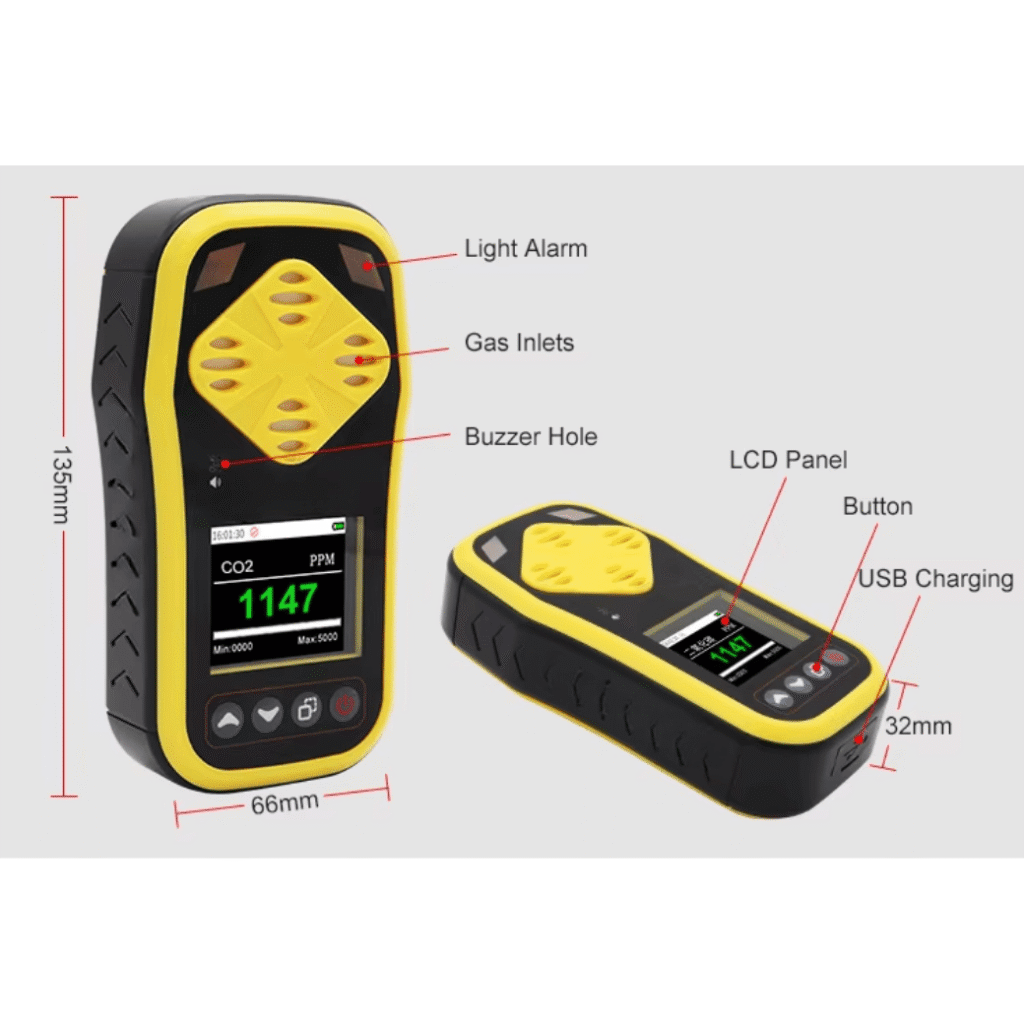

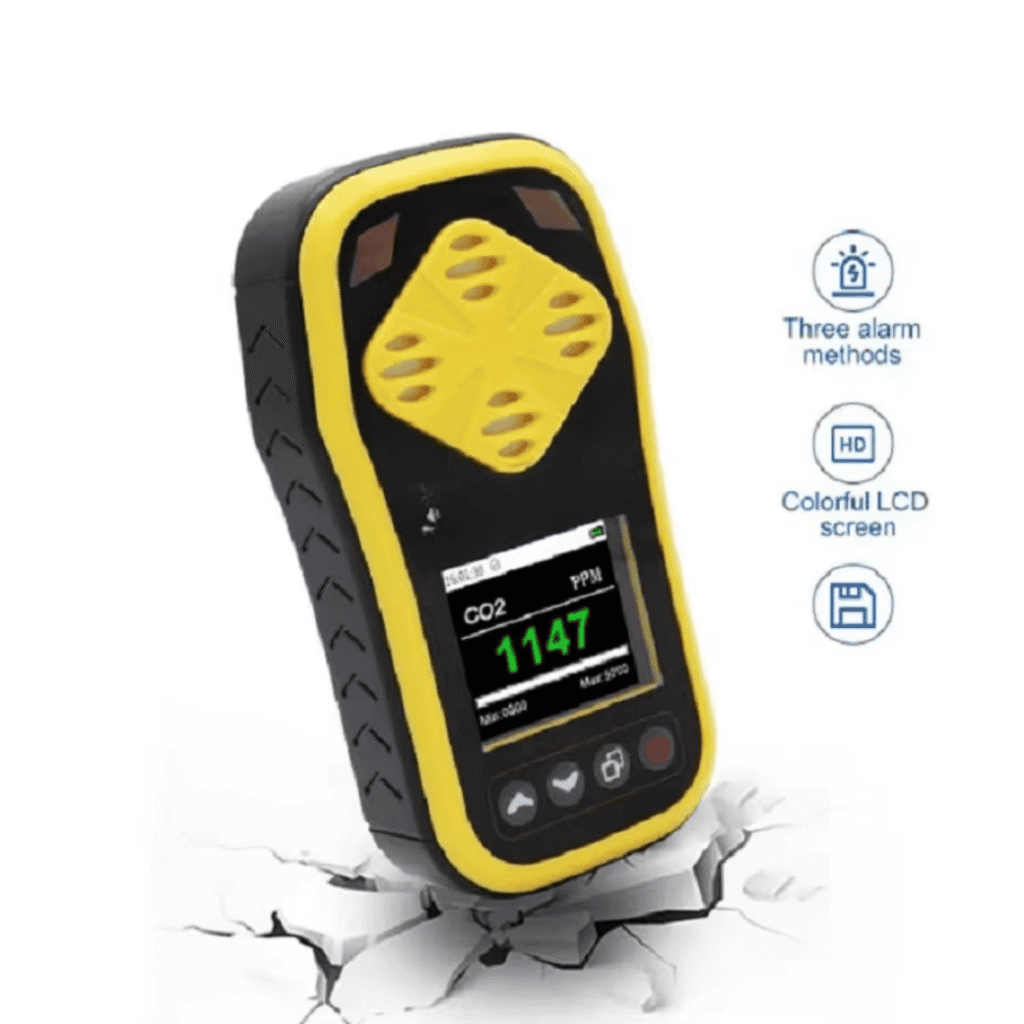

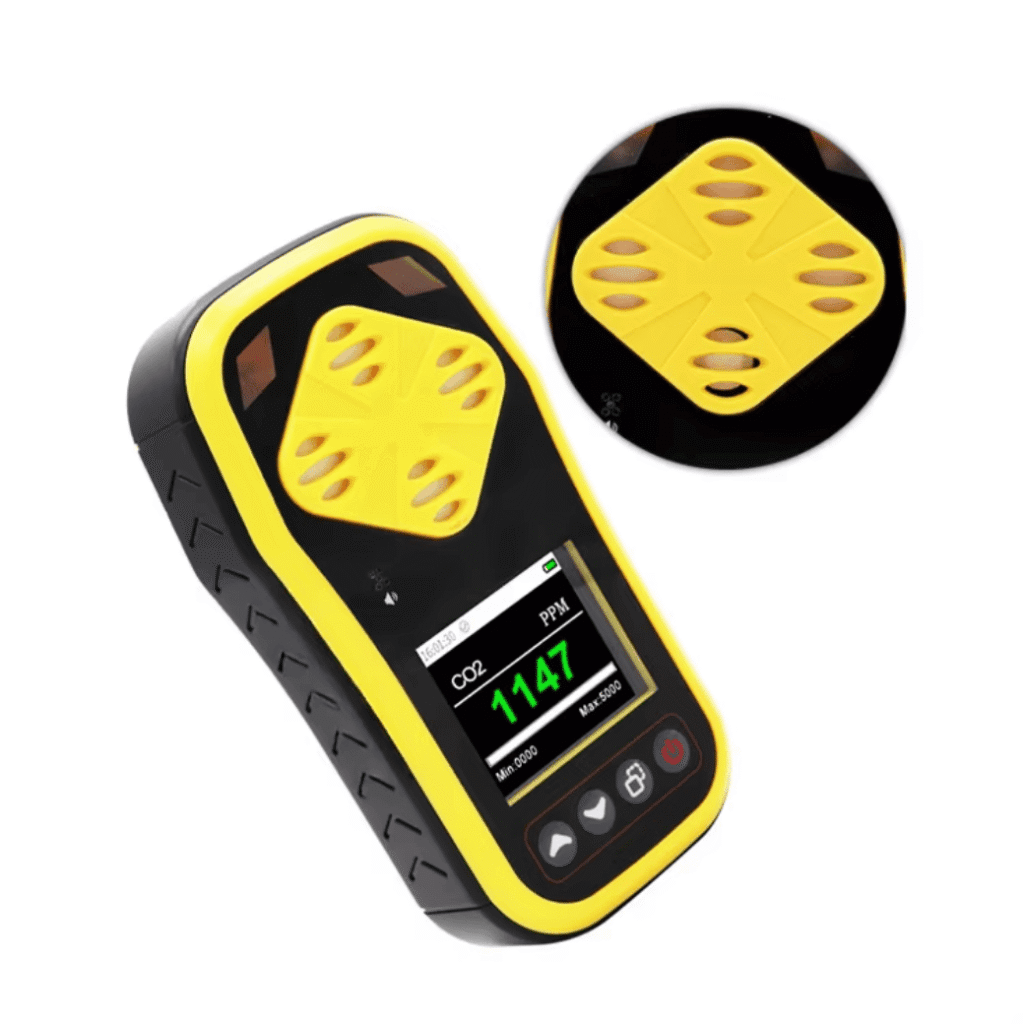

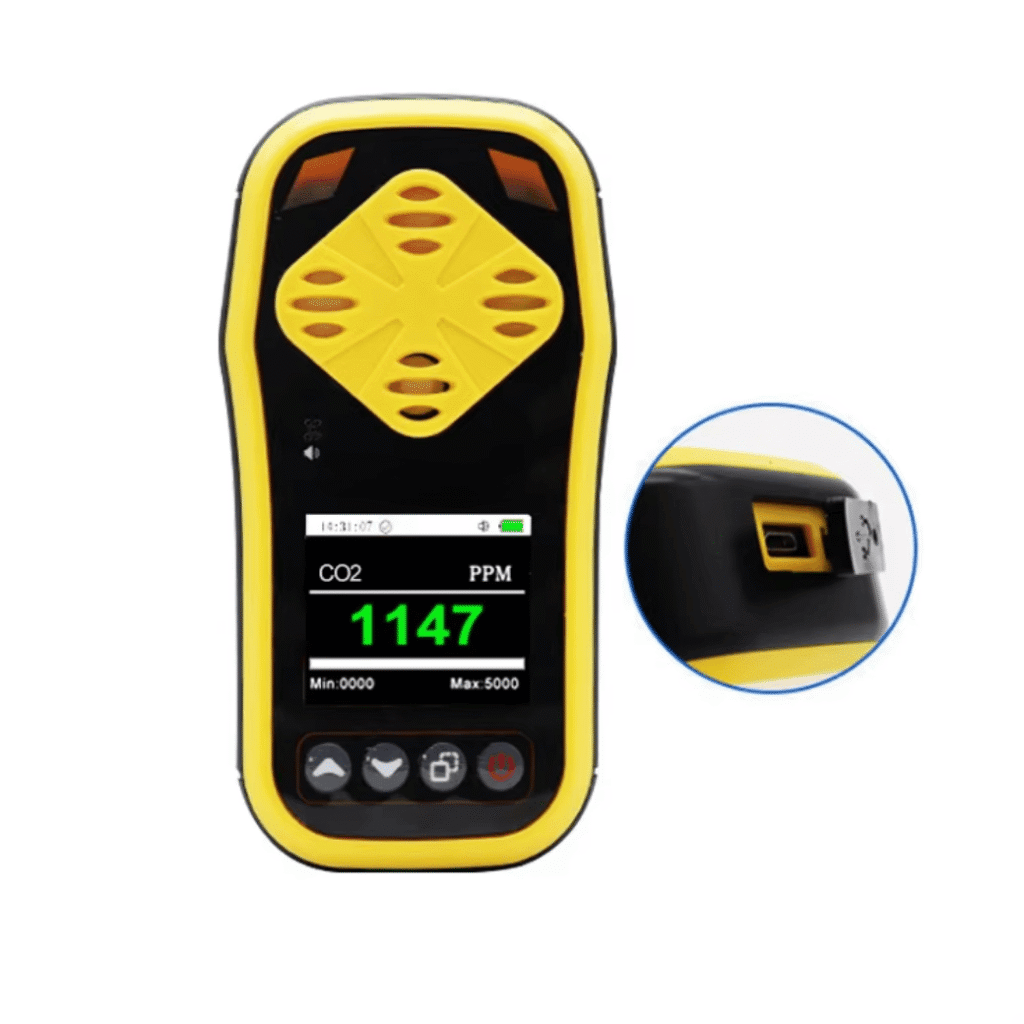

Detailed Images
(Handheld carbon dioxide co2 gas meter 0-5000ppm)
Many industries need to use or generate potentially toxic or explosive gases in the production process. RS-MG41-CO2 is an intrinsically safe gas detector developed by our company for environments containing carbon dioxide gas. The detector uses natural diffusion. Detecting gas, using NDIR infrared sensor, with excellent sensitivity and excellent repeatability. The product can store up to 100,000 test data, and can view historical data at any time with the software.
