PARAMETER
| Ethernet | |
| Port Number | 1 Ethernet Ports: 1 x WAN/LAN |
| Buffer | Rx/TX: Max 16K bytes |
| Protection | 2 KV Electromagnetic isolation for Ethernet port |
| Network Protocol | IP/TCP/UDP/DHCP/DNS/https/ ARP/ICMP/Web socket/httpsd client |
| Speed Rate | 10/100 Mbps, MDI/MDIX |
| Wi-Fi | |
| Certificate | FCC/CE |
| WiFi | 802.11 b/g/n |
| Frequency Range | 2.412GHz-2.484GHz |
| Transmit Power | 802.11b: +19dBm(Max) 802.11g: +18dBm(Max) 802.11n:+17dBm(Max) |
| Receive Sensitivity | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -73dBm |
| Hardware | |
| Interface Standard | RS232：300～460.8Kbps RS485：300～230.4Kbps |
| Input Voltage | DC5～36V |
| Operating Temp. | -40℃～ 85℃ |
| Storage Temp. | -40℃～ 125℃ |
| Size | 86*82.5*25mm(L*W*H) |
| Software | |
| Network Mode | Station/AP/AP+Station |
| Security | WEP/WPA-PSK/WPA2-PSK |
| Encryption | WEP64/WEP128/TKIP/AES |
| Work Mode | Transparent transmission / serial AT command/ https Client、Modbus TCP<=>Modbus RTU |
| Setting Command | AT+command |
| Networking Protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/https |
| Max. Client Number in TCP Server Mode | 24 |
| Configuration | Web sever+ AT command |
| More | |
| Warranty | 2 years |

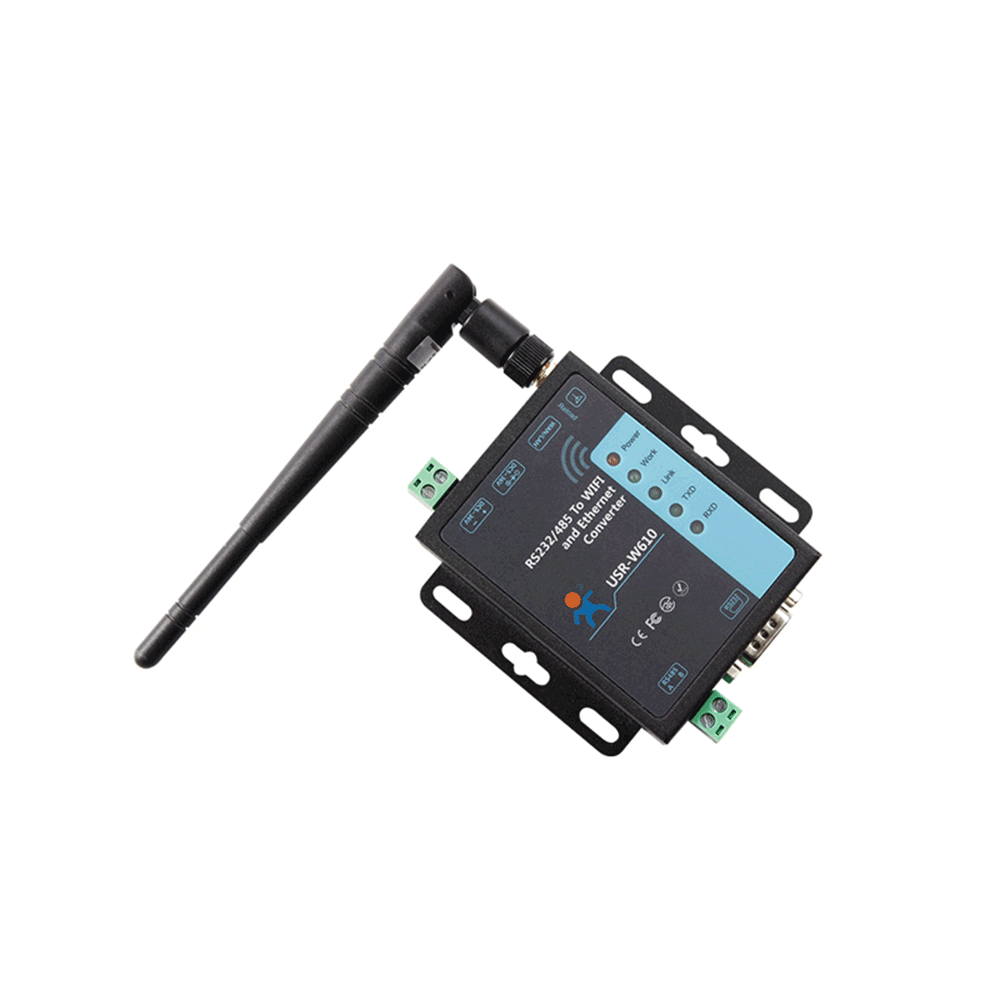

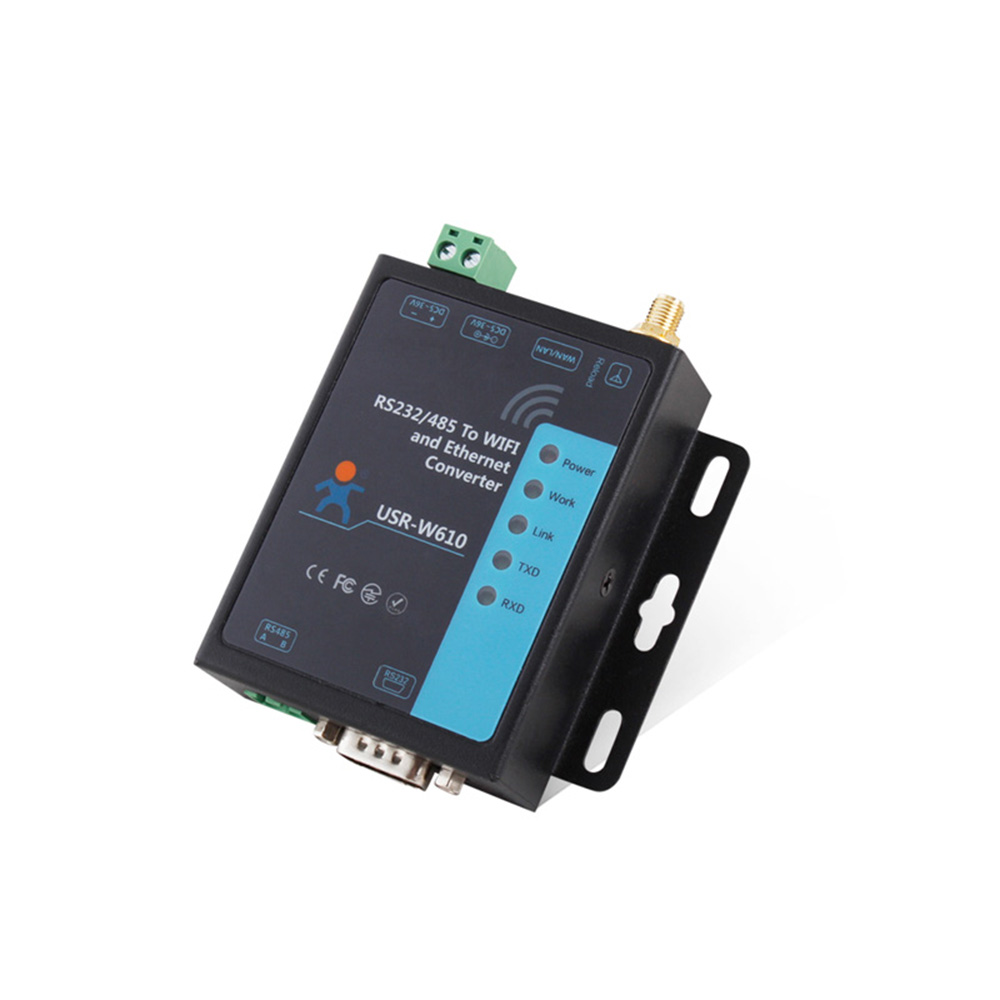

RS232/485 to Wi-Fi/Ethernet Converter
USR-W610 is a device that can realize data communication between serial port and Ethernet/Wi-Fi. Through this device, the communication between the on-site serial device and the remote SCADA system can be realized. It has a 232 serial port and a 485 serial port, but the two serial ports cannot be used simultaneously. It integrates a wealth of network protocols like MQTT, TCP, UDP etc. and supports a variety of networking methods, suitable for various scenarios.
Multiple Networking Options
The USR-W610 provides a wealth of networking methods to meet customer networking needs.
- AP mode: Allow network devices to access USR-W610 via Wi-Fi or Ethernet.
- STA mode: USR-W610 as a network device accesses other networks via Wi-Fi.
- AP+STA mode: Work in AP and STA mode simultaneously.
- Bridge mode: The device connected to the Ethernet port of W610 is equivalent to directly connecting to the upper-level network, and the W610 is equivalent to being transparent.
- Router mode: The device connected to the Ethernet port of W610 will be assigned an IP by the W610.
Transparent Transmission Mode
Data is transmitted transparently between serial port and Wi-Fi / Ethernet via TCP/UDP/HTTP Protocol, enabling data transfer between serial port device and network device.
Transparent Transmission Mode
Data is transmitted transparently between serial port andWi-Fi/Ethernet via MQTT/TCP/UDP/HTTP Protocol, enabling data transfer between serial port device and remote SCADA system.
Serial Command Mode
In this mode, USR-W610 needs work as UDP Client or TCP Client, it allows users to send serial data to different servers.
Addtional Features
- Modbus Gateway: Supports Modbus RTU/TCP protocol conversion and multi-host Modbus polling.
- Heartbeat Packet Function: Allows the remote server to detect abnormal disconnections from the client.
- Registration Packet Function: Enables the server to identify different clients using registration packets.
- Websocket Function: Facilitates real-time interaction between the serial device connected to the W610 and a PC web page.
Industrial-Grade Design, High Reliability
- EFT Protection: Protects the device from damage caused by instantaneous current interference in the circuit, such as lightning strikes or power switches.
- ESD Protection: Prevents electrostatic damage to equipment, including dust electrostatics and electric arc environments.
- Watchdog: Features both hardware and software dual watchdogs to ensure stable operation without downtime.
- Wide Operating Temperature: Supports a range from -40℃ to 85℃.
Product Details
- The device dimensions are 28.0110.064.7 mm.
- Another model has dimensions of 82.58625 mm.

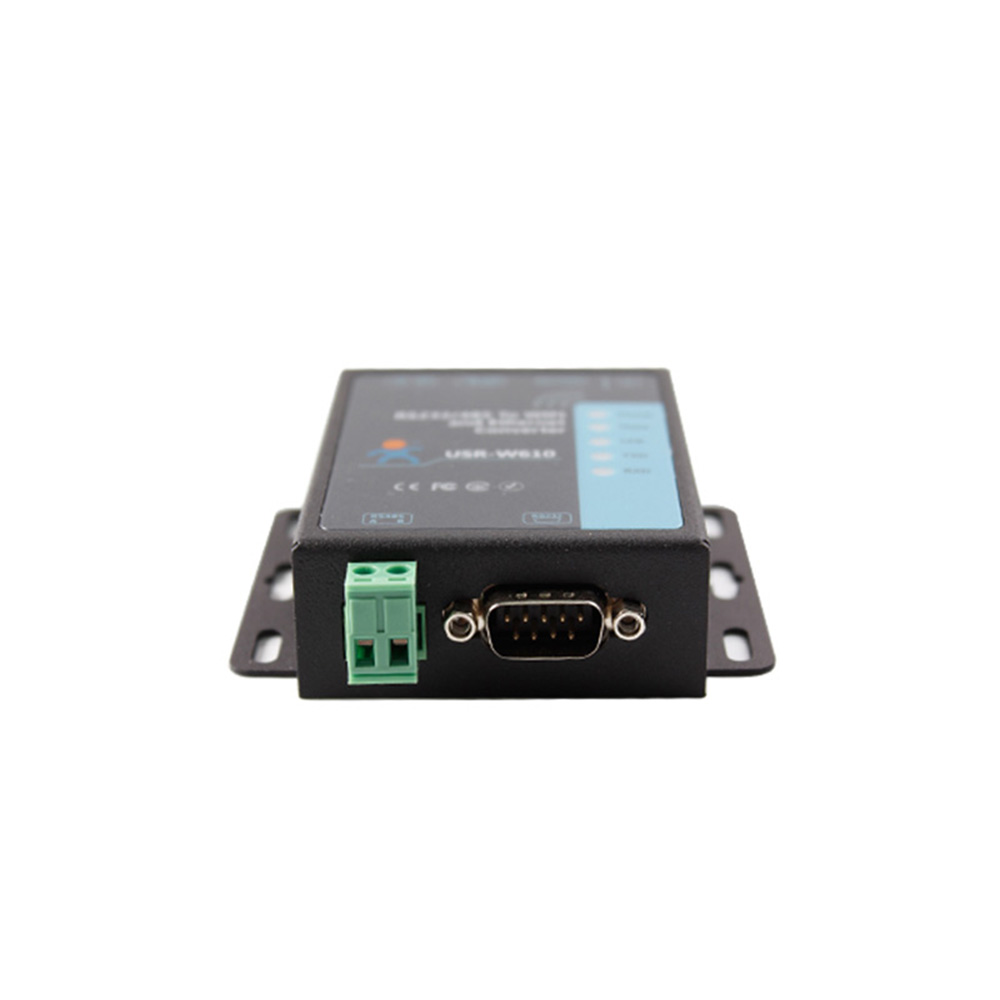

- It includes 1RS232 and 1RS485 serial ports with a baud rate range of 300~460.8K bps. Note that the two serial ports cannot work simultaneously.

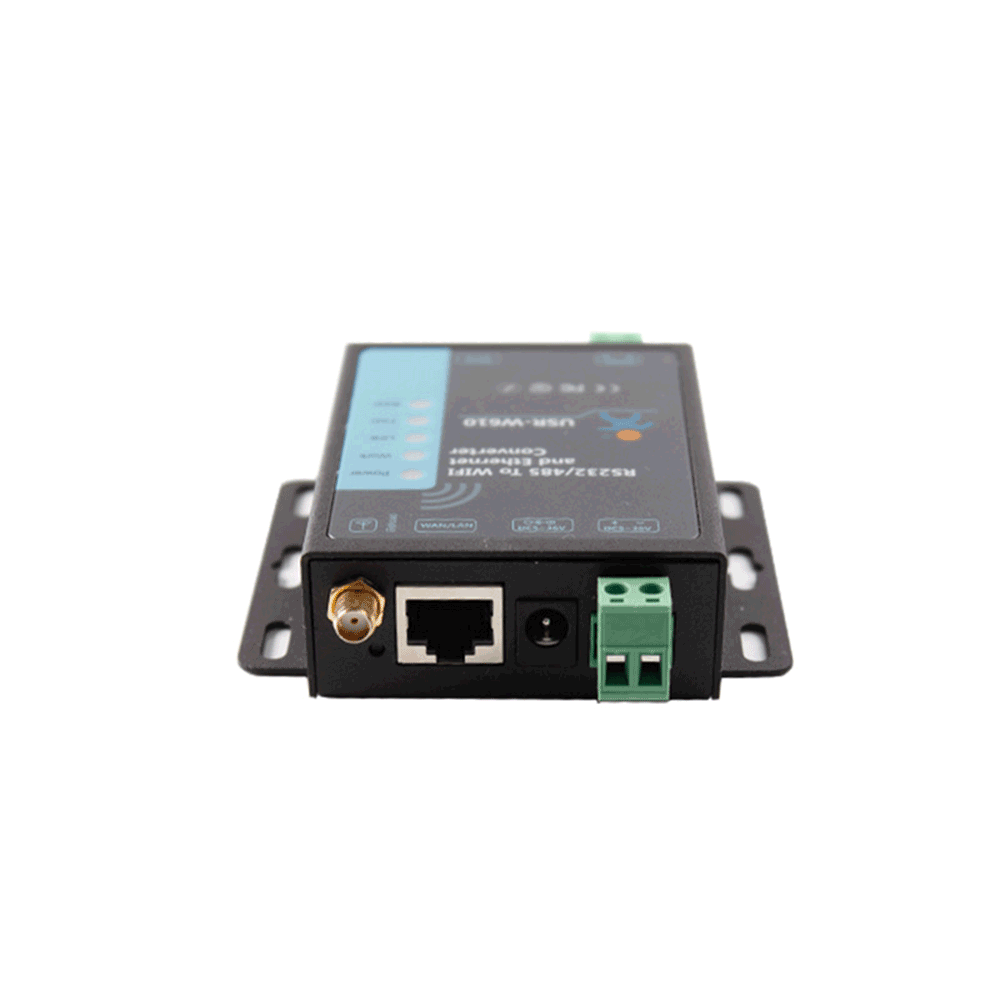

- The Ethernet port supports 10/100M MDI/MDIX, with auto-switching between cross and direct connections and 1.5KV electromagnetic isolation.
- The power supply accepts a 5~36V input via a DC socket or terminal block.
- The device supports wall mounting for installation.
- A reload button allows restoration of factory settings with a long press in case of forgotten parameters.
- The antenna connector is 1*SMA-Female.
Smart Agriculture
The USR-W610 combined with soil sensors can quickly and effectively acquire multiple sets of important data such as farmland soil temperature, humidity, pH, etc., which is convenient for users to adjust the management method in time, improve management efficiency, and create modern smart agriculture.
Medical Device Data Transmission Solution
The medical equipment transmits the entered data to the cloud server in real time through Wi-Fi network of W610.Users can quickly complete the collection, storage and analysis of important data.
