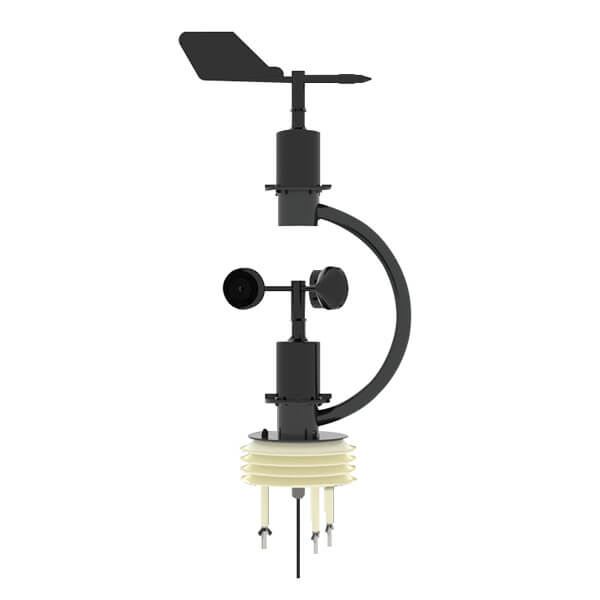

Integrated Weather Station
This low-cost weather station is perfect for short-term or long-term environmental monitoring and data recording across various locations. Compact and lightweight, the integrated station features a durable outer shell made of high-quality, UV-resistant materials, ensuring a long service life. Equipped with a high-sensitivity probe at the bottom, it delivers stable signals and higher measurement accuracy.

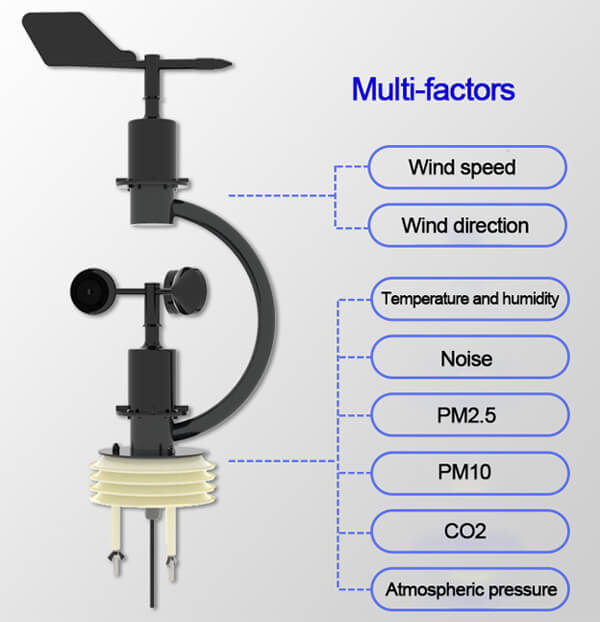

Integrated weather station features
1.The integrated design incorporates multiple collection devices, making it easy to install.
2. Wind speed and direction structure and weight have been carefully designed and distributed respectively, with a small moment of inertia and sensitive response.
3. Noise collection, accurate measurement, range up to 30dB~120dB.
4. PM2.5 and PM10 are simultaneously collected with a range of 0-1000µg/m³ and a resolution of 1µg/m³. Additionally, the sensor employs unique dual-frequency data collection and automatic calibration technology. As a result, it achieves a consistency of ±10%.
5. CO2 range: 0-5000ppm, resolution 1ppm.
6. The device accurately measures environmental temperature and humidity using a high-precision unit imported from Switzerland.
7. Wide range 0-120Kpa air pressure range, applicable to various altitudes.
8. Using dedicated 485 circuits, stable communication, 10~30V wide voltage range power supply.
Integrated weather station use
The portable weather station is simple to install.To complete the installation, mount the wind speed and direction sensor on the fixed bracket and connect the wire. Additionally, users can freely match sensor modules according to their needs. Furthermore, this integrated weather station offers a high degree of protection, ensuring long-term outdoor use.
RS-FSXJT-N01-1-EX portable weather station is suitable for campuses, houses, churches, gardens, office buildings, and other places that require simple installation or small space.Install the device on the top of the building to prevent obstructions from affecting measurement accuracy.
Integrated weather station datasheets
| Power supply | 10-30VDC | |
| Max. power consumption | RS485 Output | 0.8W |
| Measuring range | Wind speed | 0~60m/s |
| Wind direction | 8 directions | |
| Humidity | 0%RH~99%RH | |
| Temperature | -40℃~+120℃ | |
| Atmospheric pressure | 0-120Kpa | |
| Noise | 30dB~120dB | |
| PM10 PM2.5 | 0-1000ug/m3 | |
| CO2 | 0-5000ppm | |
| Accuracy | Wind speed | ±0.3m/s |
| Humidity | ±3%RH(5%RH~95%RH,25℃) | |
| Temperature | ±0.5℃（25℃） | |
| Atmospheric pressure | ±0.15Kpa@25℃ 101Kpa | |
| Noise | ±0.5dB | |
| PM10 PM2.5 | ±3%FS(@100μg/m3,25℃,50%RH) | |
| CO2 | ±(50ppm+ 3%F·S) @(25℃,400~5000ppm) | |
