This Abs tipping bucket rain and light sensor guage is an tipping bucket rain sensor, which is a product for measuring rainfall and light. It uses pulse principles to measure rainfall, and the rainfall detection is reliable. Different from traditional mechanical rain sensors, pulse rain sensors are smaller in size, more sensitive and reliable, smarter and easier to maintain.
Power supply | 9~30V DC | |
Rain sensing diameter | 6cm | |
Maximum instantaneous rainfall | 24mm/min | |
Light intensity range | 0-200,000 Lux | |
Transmitter element temperature and humidity resistance | -40-80℃ 0~95% (relative humidity), （no condensation） | |
Working pressure range | Standard atmospheric pressure ±10% | |
Long-term stability | Light ≤5%/y | |
Resolution | Rainfall | standard 0.1mm |
Light | 1Lux | |
Accuracy | Rainfall | ±4% |
Light | ±7%(25℃) | |
Detailed Images:

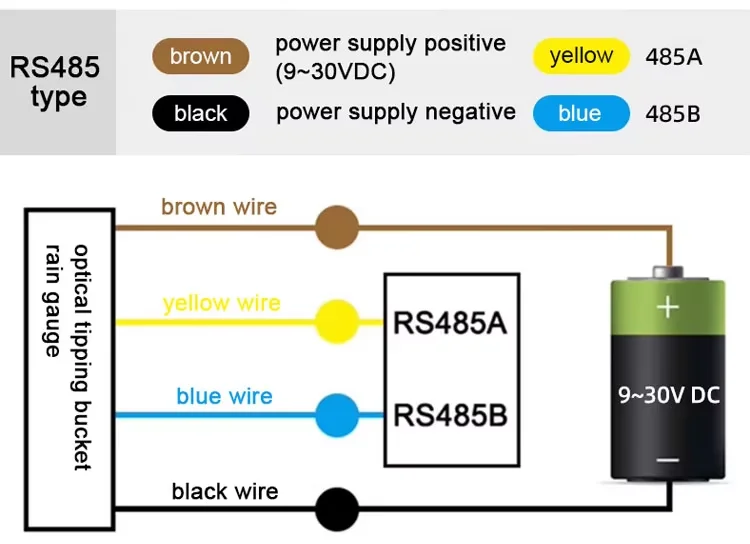

Wiring instructions for Abs tipping bucket rain and light sensor guage:
This type is a combined rainfall and light intensity sensor, integrating both rainfall measurement and illuminance detection functions. This model supports RS485 output only. It is equipped with a high-precision photosensitive sensor for accurate light intensity measurement, with output values expressed in lux. At the same time, it reliably and sensitively detects changes in rainfall.

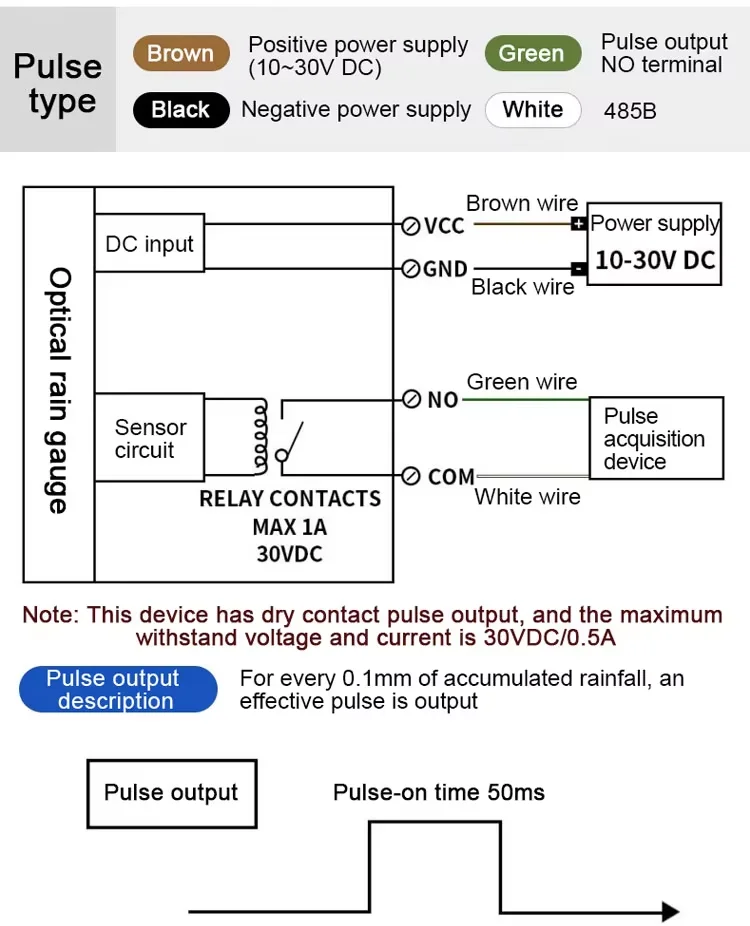

This small tipping bucket rainfall sensor utilizes pluse principles to measure rainfall. When raindrops fall onto the sensor’s tipping bucket, the change in the bucket’s tilt angle triggers the internal components to generate a signal, accurately capturing the rainfall amount. Designed to be compact and lightweight, the sensor can be easily held in one hand, making it convenient to carry and install. To meet the diverse requirements of different application scenarios, we offer two model options for your this selection.
