Description

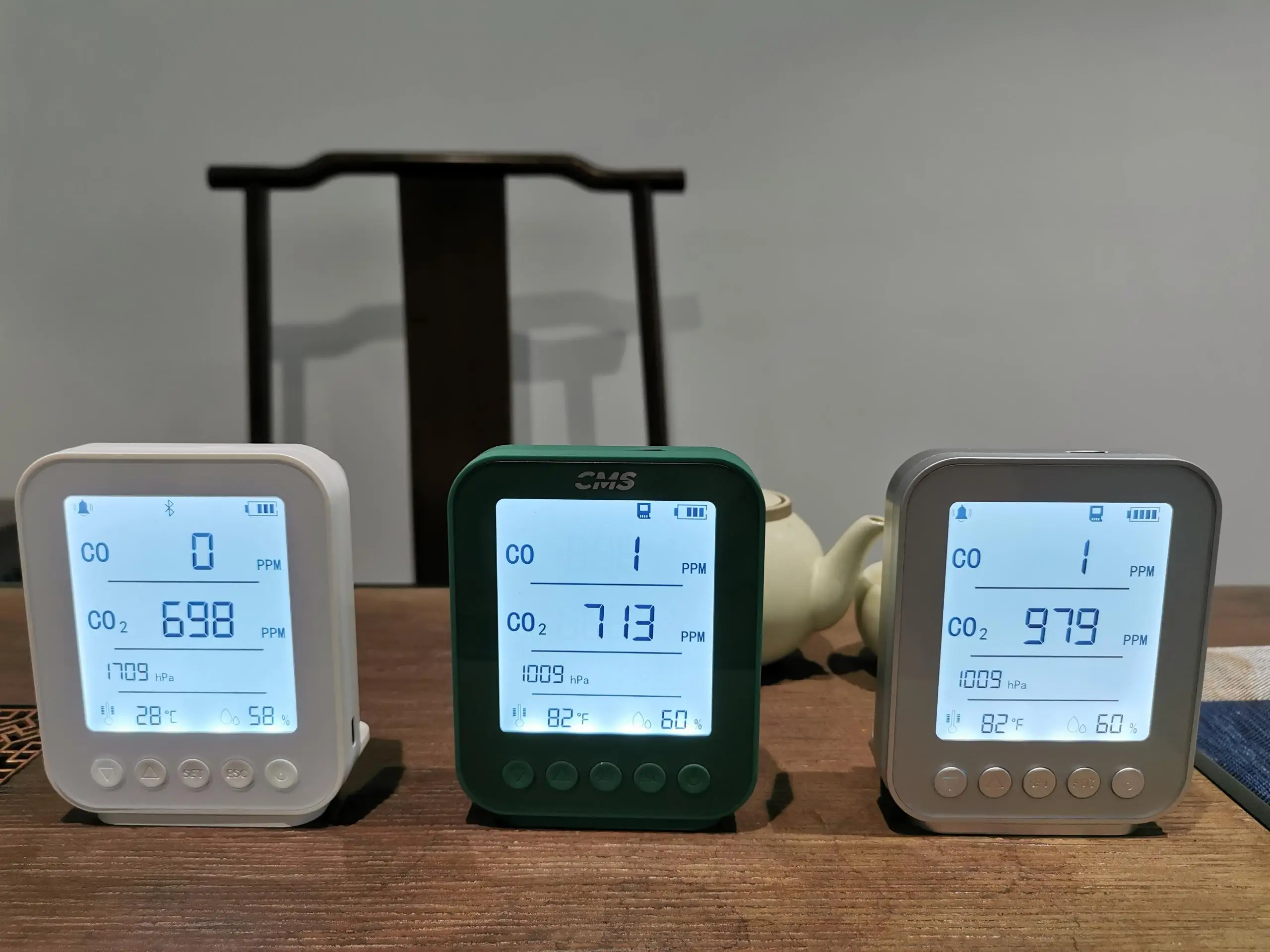

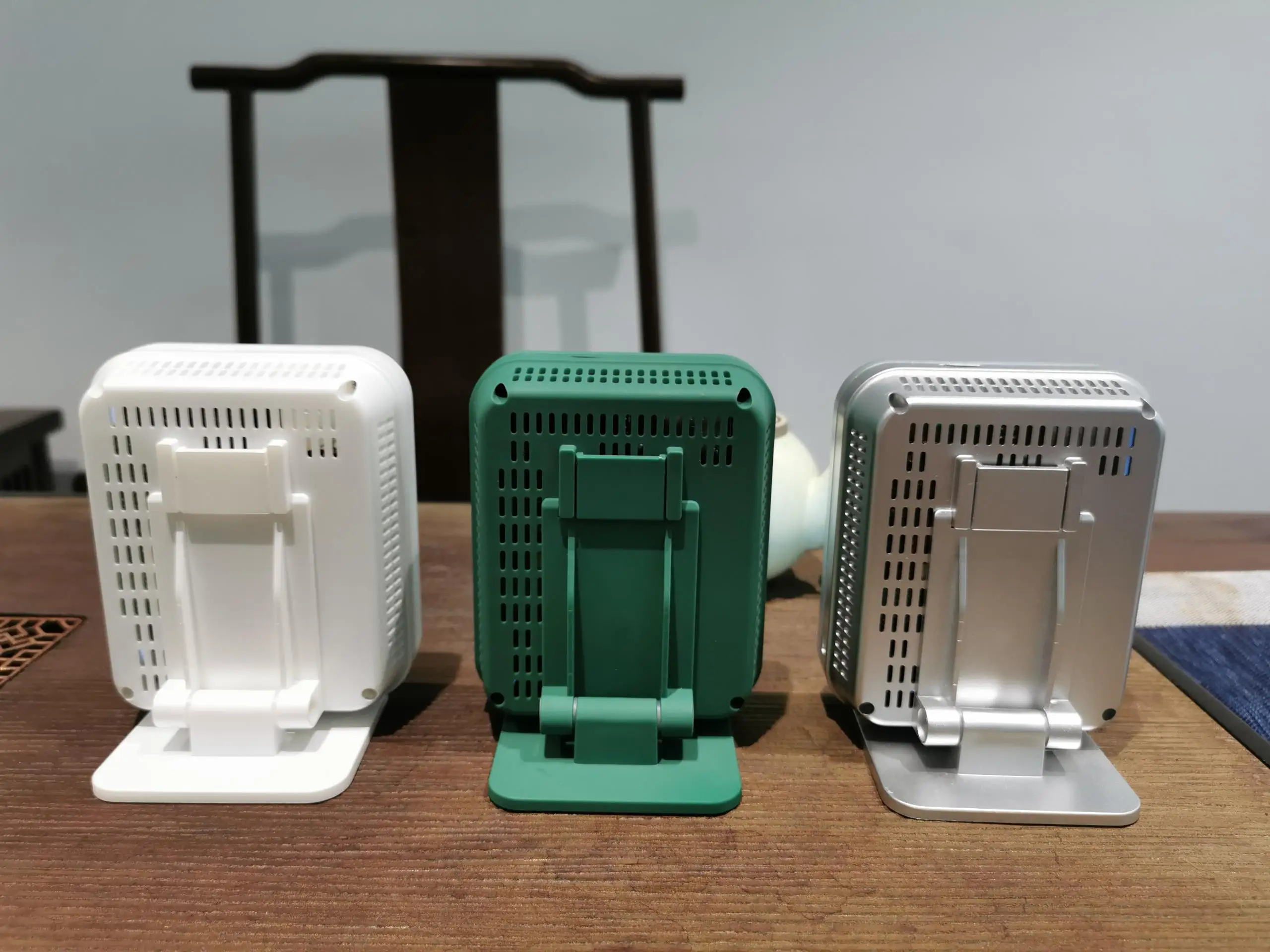

| Note | This product available in 3 colours, we ship randomly, to get specific color pls contact us before order | |
| For Downloads | Data Sheet – User Manual – Other Documents – Certificates | |
| For Purchase | Call / WhatsApp / Telegram: +91 8148834200 | |
| For Technical Support | Call / WhatsApp / Telegram: +91 8148834211 | |
Description:
 Product descriptions from the supplier

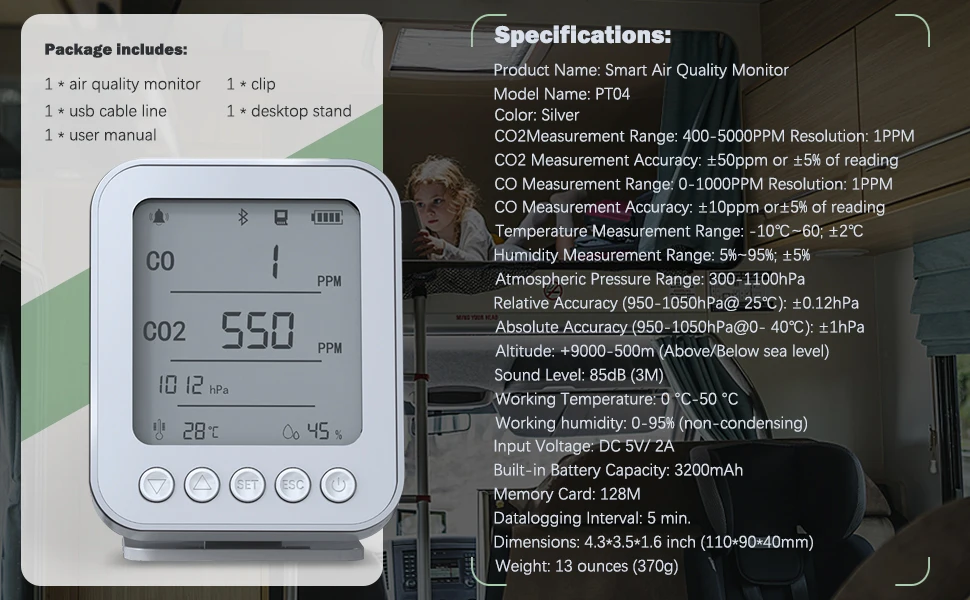

Product Specification
|
Product Name:
|

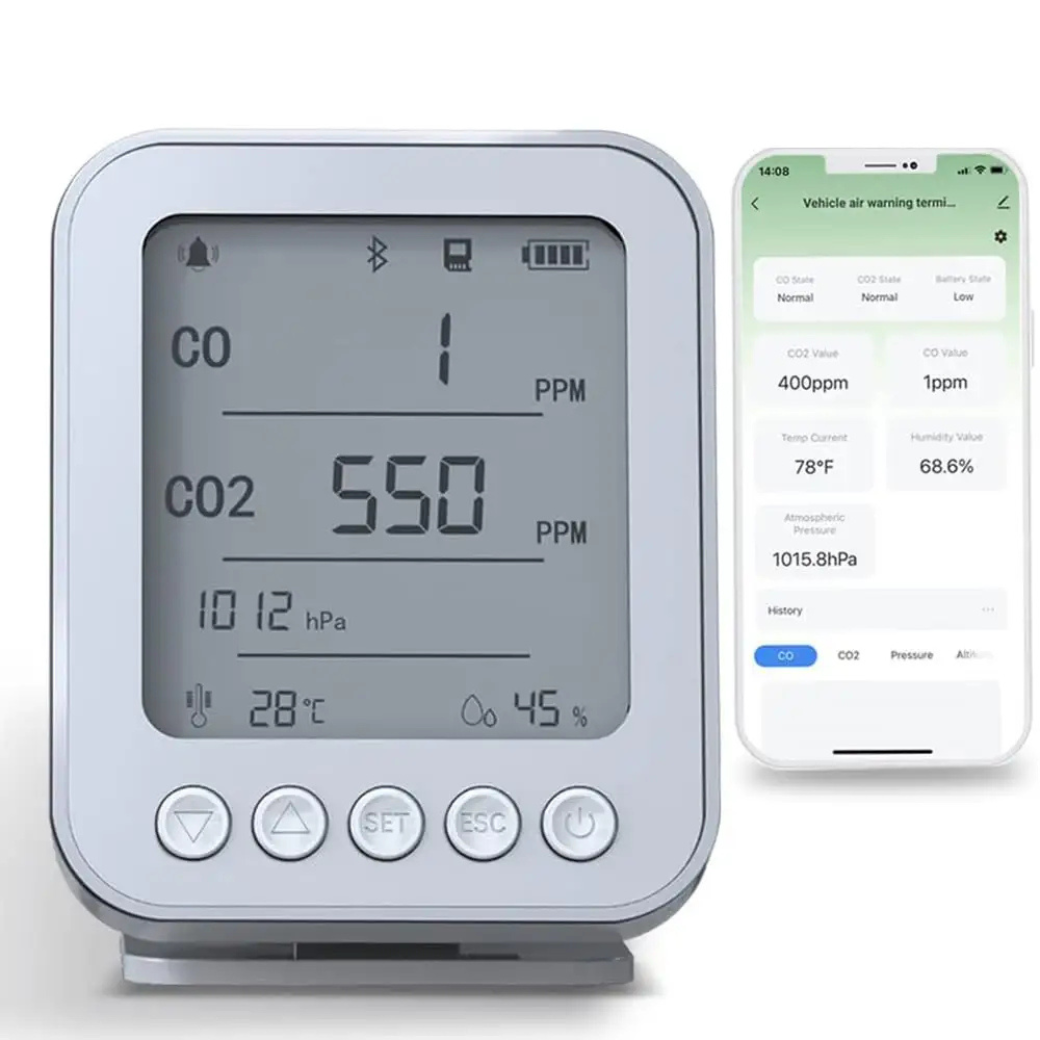

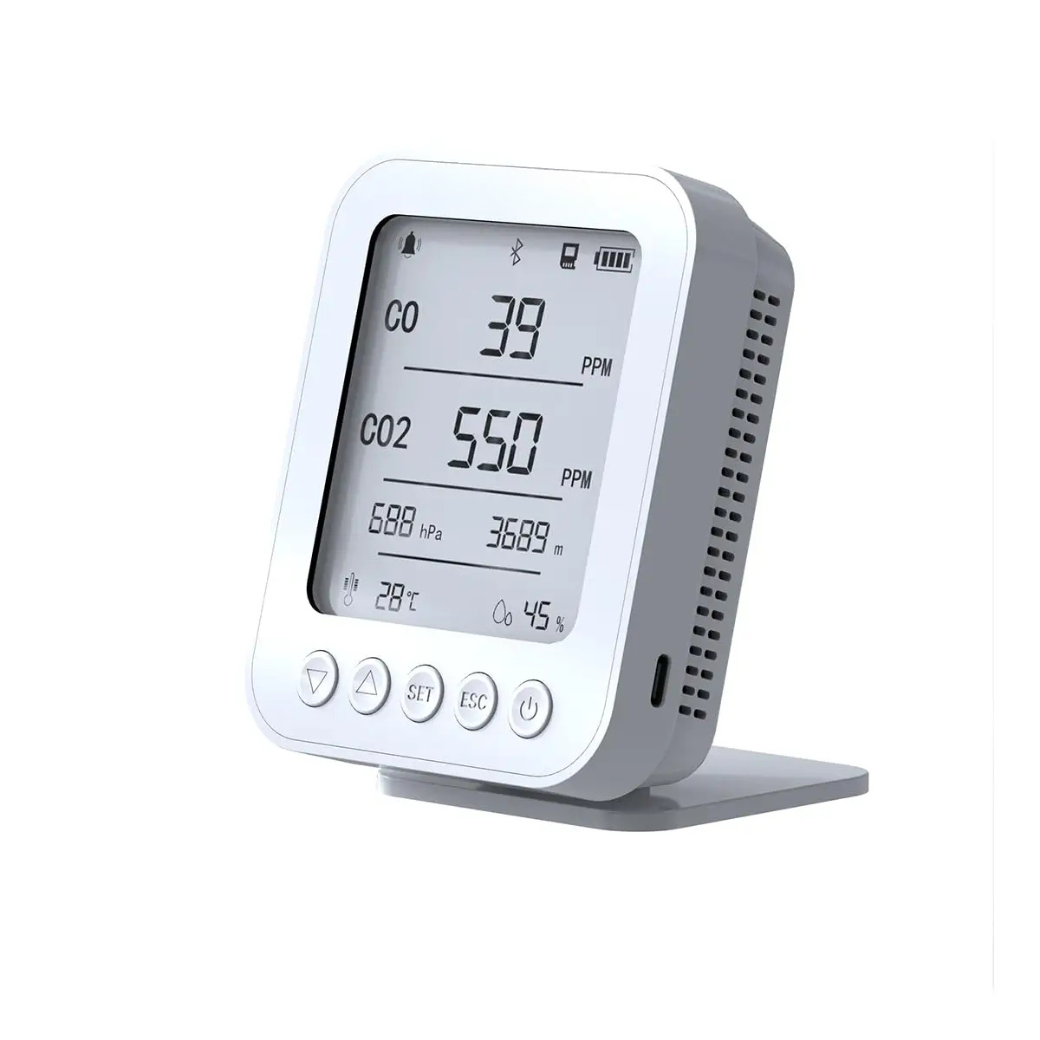

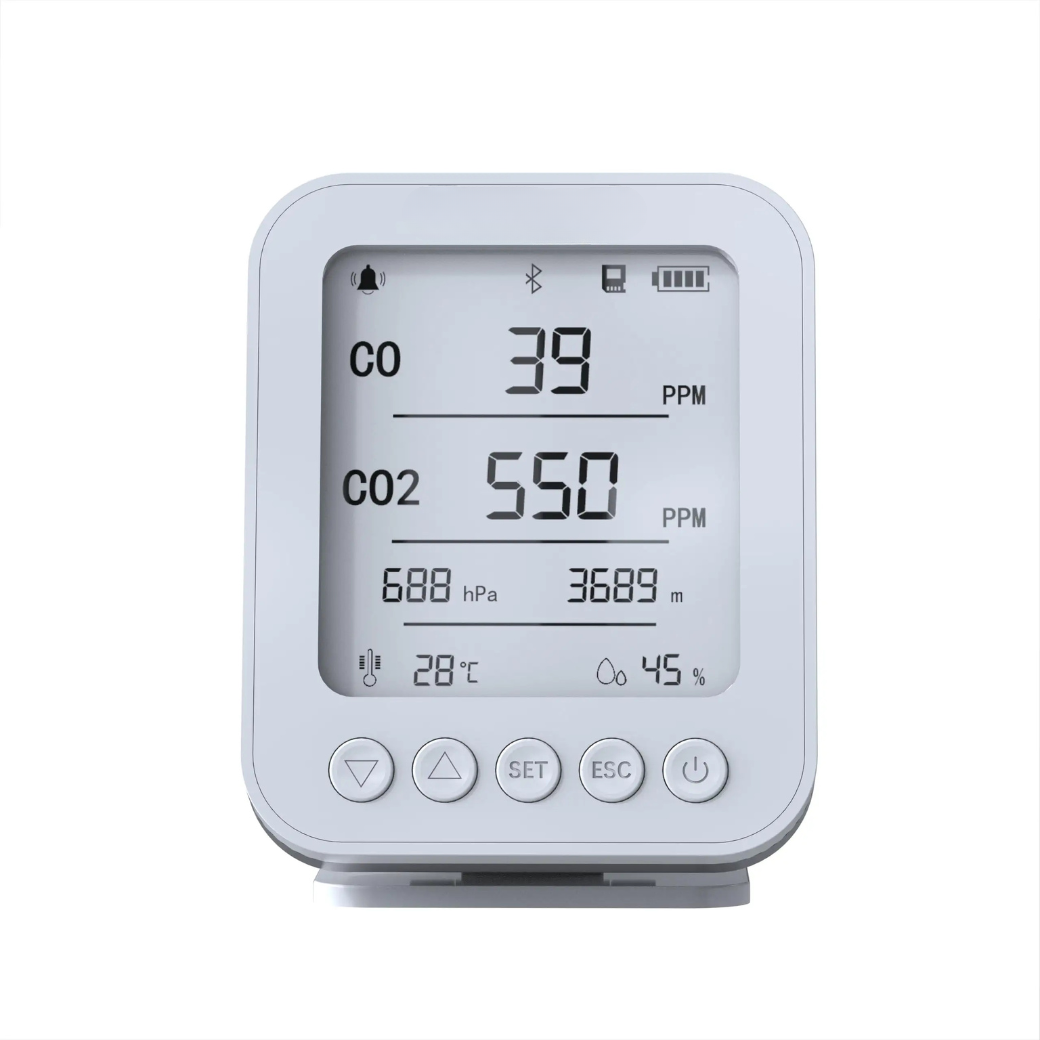

Smart Air Quality Monitor
|
|
|
Model:
|
PT04
|
|
|
Material:
|
Fire resistant ABS
|
|
|
Intended use:
|
Detect and digitally real- timely monitor: Co2, CO, Atmospheric pressure,, temperature and humidity
|
|
|
Measuring Object
|
Measuring Range
|
Accuracy
|
|
Co2
|
400-5000PPM
|
±50ppm or ±5% of reading
|
|
CO
|
0-1000ppm
|
±5% or ±10PPM
|
|
Atmospheric pressure
|
300-1100hPa
|
-Relative Accuracy(950-1050hPa@ 25℃): ±0.12hPa
-Absolute Accuracy(950-1050hPa@0- C1140℃): ±1hPa |
|
Temperature:
|
-20~60℃
|
±2℃
|
|
Humidity:
|
5% ~ 95% RH
|
±5%RH
|
|
CO Sensor:
|
Stabilized Electrochemical CO sensor
|
|
|
Co2 sensor:
|
NDIR Co2 sensor
|
|
|
Co2 sensor resolution:
|
1PPM
|
|
|
CO sensor Resolution:
|
0.5 PPM
|
|
|
Working temperature:
|
0°C – 50°C
|
|
|
Working Humidity:
|
0-95% (non-condensing)
|
|
|
Sound Level
|
85dB (3M)
|
|
|
Repeatability:
|
±2%
|
|
|
Response Time:
|
<60S
|
|
|
Color:
|
White//Silver/Deep Green
|
|
|
Battery capacity:
|
3200mAh
|
|
|
CO alarm settings
|
1. The screen flashing 10 times when the CO value is above 9ppm.
2. The buzzer alarming 6 mins when CO value is above 25ppm. |
|
|
Co2 indicator
|
0-499PPM — Perfect condition
500-999PPM — Good Condition 1000-1499PPM — Normal Condition over 1500PPM –Bad condition |
|
|
Input Voltage:
|
DC 5V/ 2A
|
|
|
Power supply:
|
Chargeable battery and 1.5M long USB
|
|
|
Wrranty time:
|
12 months
|
|
|
Customize:
|

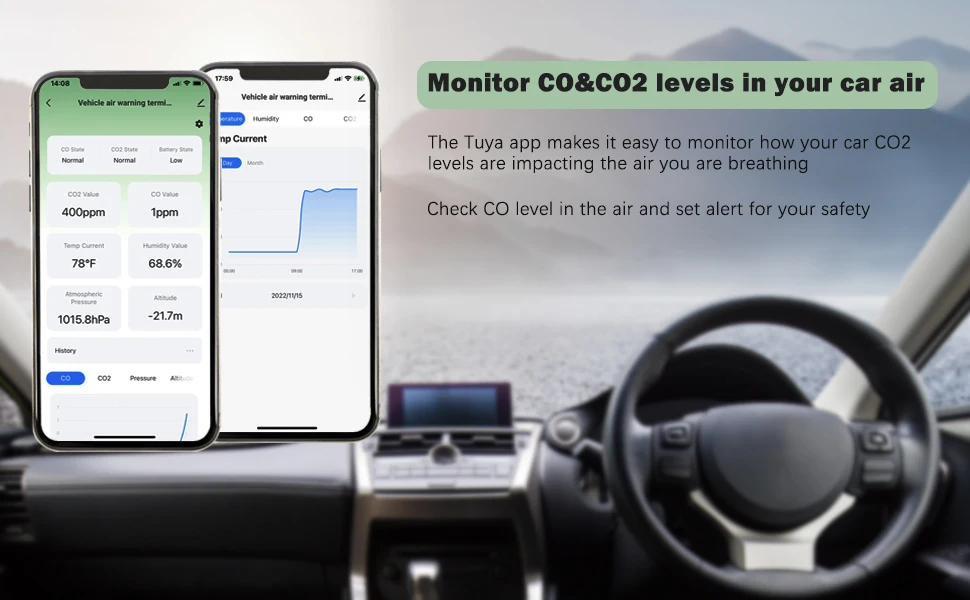

WiFi function can be optional, interface content, brand logo, language, gift box and manual.
|
|
