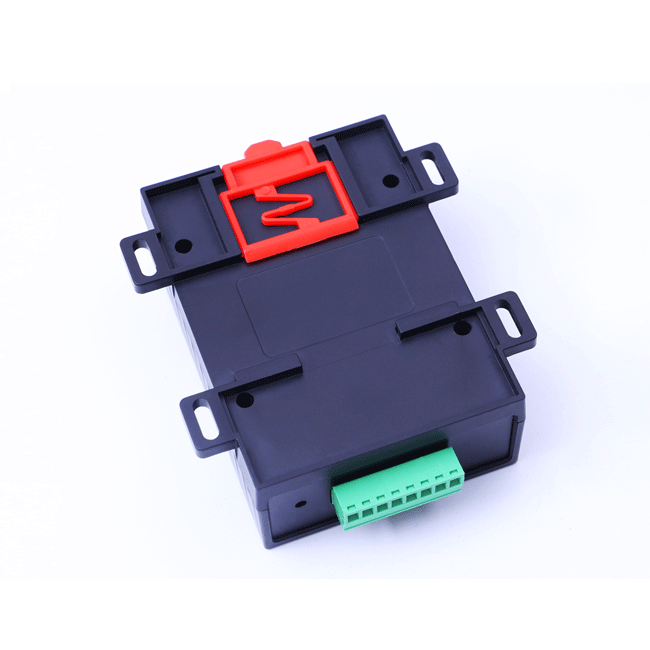

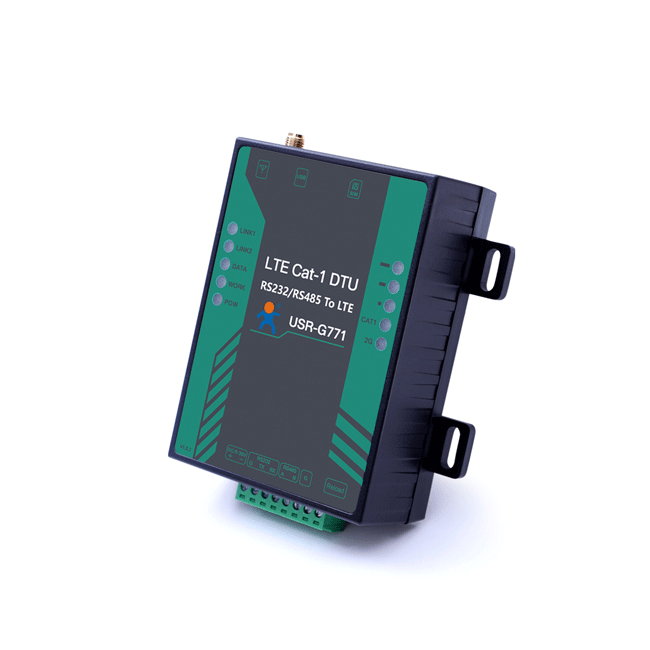

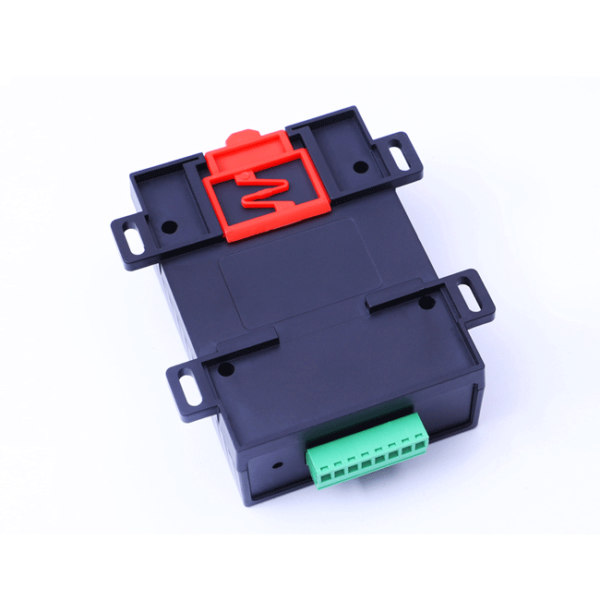

PARAMETERS
| Models | USR-DR502-E | USR-G771-E | WH-LTE-7S1-E | |
| LTE Category | LTE Cat.1 | LTE Cat.1 | LTE Cat.1 | |
| Frequency Bands | LTE FDD | B1/B3/B7/B8/B20/B28 | B1/B3/B7/B8/B20/B28 | B1/B3/B7/B8/B20/B28 |
| GSM/GPRS/EDGE | 900/1800MHz | 900/1800MHz | 900/1800MHz | |
| Transmission Speed | LTE FDD Rel.13 | 10MbpsDL/5Mbps UL | 10MbpsDL/5Mbps UL | 10MbpsDL/5Mbps UL |
| GPRS | 85.6KbpsDL/85.6Kbps UL | 85.6KbpsDL/85.6Kbps UL | 85.6KbpsDL/85.6Kbps UL | |
| TX Power | FDD:B1/3/7/8/20/28 | 23dBm±2dB | 23dBm±2dB | 23dBm±2dB |
| GSM:900MHz | 33dBm±2dB | 33dBm±2dB | 33dBm±2dB | |
| GSM:1800MHz | 30dBm±2dB | 30dBm±2dB | 30dBm±2dB | |
| Rx Sensitivity | GSM:900MHz | -109.5dBm | -109.5dBm | -109.5dBm |
| GSM:1800MHz | -108dBm | -108dBm | -108dBm | |
| FDD:B1/3/20 | -98dBm | -98dBm | -98dBm | |
| FDD:B7 | -97.5dBm | -97.5dBm | -97.5dBm | |
| FDD:B8/B28 | -98.5dBm | -98.5dBm | -98.5dBm | |
| Serial Parameters | NO. | RS485(Terminal)*1 | RS485(Terminal)*1 RS232(DB9)*1 | TTL(3.0V)*1 |
| Data Bits | 8 | 8 | 8 | |
| Stop Bits | 1,2 | 1,2 | 1,2 | |
| Parity Bits | NONE,ODD,EVEN | NONE,ODD,EVEN | NONE,ODD,EVEN | |
| Baud Rate | 1200～230400 | 1200～230400 | 1200～460800 | |
| Physical Interfaces | SIM/USIM card | 1.8V/3V(with slot) | 1.8V/3V(with slot) | 1.8V/3V(with slot) |
| Antenna | SMA Female | SMA Female | IPEX socket | |
| USB | USB 2.0 | USB 2.0 | USB 2.0 | |
| Indicators | POWER,WORK,NET,LINK,RSSI | POWER,WORK,NET,LINK | POWER,WORK,NET | |
| Reload | Button | Button | Pin,built-in Pull-up Res | |
| Reset | / | / | Pin,built-in Pull-up Res | |
| Hardware Characteristics | Input Voltage | 9V～36V | 9V～36V | 3.6V～4.2V/5～16V |
| power consumption | ＜3W | ＜2.8W | ＜2.7W | |
| Connector | Terminal | DC 5.0 Jack/Terminal | DIP | |
| Housing material | ABS Plastic | Metal | / | |
| Dimensions(mm) | 44.5×31.8×13.94 (L*W*H) | 82.6×86×25 (L*W*H) | 44.4×41.8×12.5 (L*W*H) | |
| Operating temperature | -30℃～+75℃ | -30℃～+75℃ | -30℃～+75℃ | |
| Storage Temperature | -40℃～85℃ | -40℃～85℃ | -40℃～85℃ | |
| Operating humidity | 5%～95% | 5%～95% | 5%～95% | |
| Storage humidity | 5%～95% | 5%～95% | 5%～95% | |
| Software | Protocol | TCP/UDP/IPV4/IPV6/ /DNS/HTTP/MQTT/SSL/TLS | ||
| RNDIS | Default Close | Default Close | Default Close | |
| Serial to network | 4 sockets, default A | 4 sockets, default A | 4 sockets, default A | |
| SMS | PDU/TEXT | PDU/TEXT | PDU/TEXT | |
| Configuration | Serial,Net,SMS AT commands | Serial,Net,SMS AT commands | Serial,Net,SMS AT commands | |
| Cache | 20 packets*4K Bytes | |||
| Packaging mechanism | Packaging time(ms) | 10~500,default50 | 10~500,default50 | 10~500,default50 |
| Packaging length(byte) | 5～65535,defalut1024 | 5～65535,defalut1024 | 5～65535,defalut1024 | |
| Others | Tool | USR-Cat1Configuration Utility | USR-Cat1Configuration Utility | USR-Cat1Configuration Utility |
| Certifications | CE,RoHS | CE,RoHS | CE,RoHS | |
Application Case
Quickly responding, G771 uploads the alarm data via Internet as soon as possible, thus ensuring the safety of lives and property
Case of Agricultural IOT Environmental Monitoring
G771 can quickly upload the data collected by sensors in agricultural greenhouses to remote servers through the LTE or GPRS network to facilitate the control center to monitor the greenhouse dynamics in real time and respond in time.
Transmission of Charging Pile Data Through Internet
As a charging pile works, its running data can be quickly uploaded to a cloud server through the connected G771 to help the back-end operating personnel uniformly manage the data
