Parameter | Value |
Wireless parameters | |
Frequency band | L:398-525MHz, H:803-930MHz |
Transmitting power | 10dBm~20dBm |
Receiving sensitivity | -138.5dBm@0.268Kbps |
Transmission distance | 3500 meters. Test condition: Open area, clear weather, 20dBm transmitting power, 5dBi antenna gain, height is greater than 2 meters, 0.268K air rate. |
Antenna | SMA |
Hardware parameters | |
Data interface | Serial port: Support RS232/RS485.
Baud rate: 1200bps~115200bps |
Working voltage | 5V~36V |
Working current | Transmitting current: 45mA@12V.
Standby mode: 12mA@12V. |
Working temperature | -30℃~+80℃ |
Storage temperature | -45℃~+90℃ |
Working humidity | 10~90%RH |
Storage humidity | 10~90%RH |

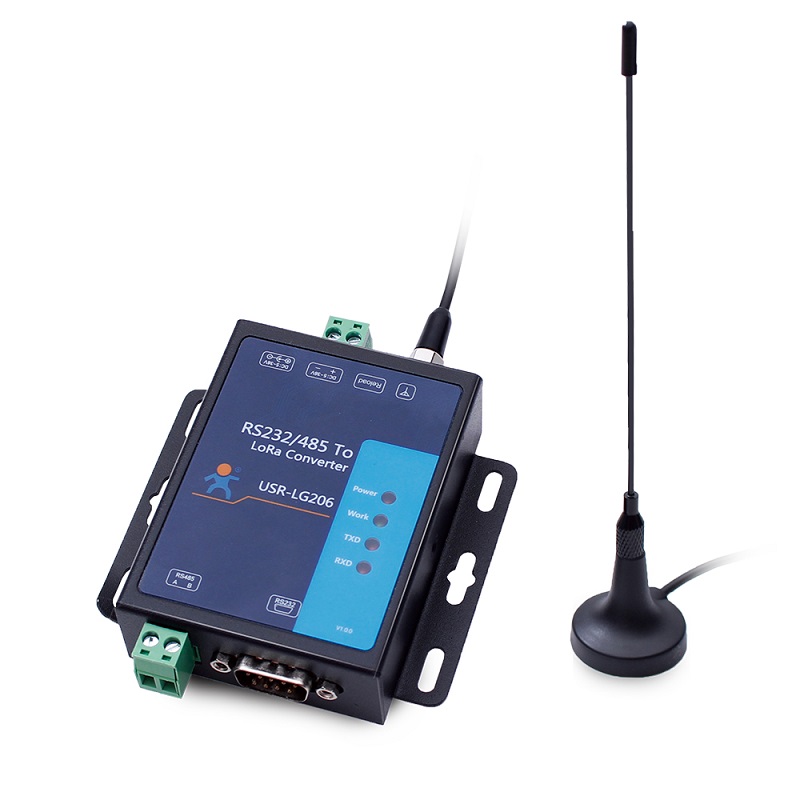

LoRa Modems/Serial RS232 RS485 to LoRa Converters-USR-LG206-P
Support LoRa point to point protocol and fixed-point transmitting mode
Long communication distance, anti-interference, high sensitivity and air waking up
RS485 interface with EMC high level protection
Basic Function of LoRa Modems/Serial RS232 RS485 to LoRa Converters-USR-LG206-P
Realize point-to-point data transmission between two serial devices by two lora modems without any data transmission protocol

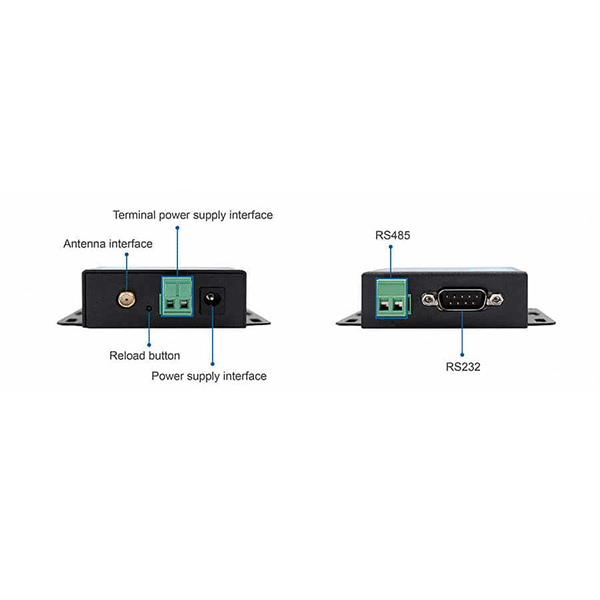

Functional diagram of LoRa Modems USR-LG206-P:
Interface:
- Antenna interface
- Terminal power supply interface
SX127X solution:
- Ultra-low power demand design
- Powerful anti-interference capacity
Long communication distance:
- Long transmission distance and powerful penetrating power.
- Data transmission is more stable than traditional mode.
- Be suited to long-distance data collection.
Anti-interference High receiving sensitivity:
- Unique signal frequency spectrum amplification
- Receiving sensitivity can reach -138.5dBm
Hardware protection:
- Full wired terminal installation and protection for lightning strike
- High current protection for power supply and interface
- 2KV RS485 anti-surge protection: 2KV
- Over-current protection for power supply
EFT:
When there is instantaneous high current in the circuit(such as power switch, etc.), it can ensure that the device hardware is not damaged.
- ±2KV Power supply interface ±2KV
- ±2KV Ethernet interface and serial port ±2KV
ESD:
Prevent electrostatic damage equipment(Such as: dust electrostatic, electric arc, etc.)
- ±15KV Air ±15KV
- ±8KV Contact ±8KV
Watchdog:
- Well-designed hardware watchdog which can realize 24 hours stable operation.
Security:
- Use AT command to control data encryption transmission to provide security communication mechanism.
- realize three elements of security: confidentiality, security and availability.
- Serial device, Plain text, Encryption, Cipher text, Decode, Messy code.
Work mode:
- Transparent transmission mode
- Realize point-to-point data transmission between two serial devices by two LG206-P
- Serial device
AT command mode
- Support serial AT command to query/set parameters
Fixed-point transmitting mode
- In fixed-point transmitting mode, LoRa terminal LG206-P can change destination address and channel flexibly when LG206-P is transmitting data to realize flexibly changing object module.
- Serial device, Transmit, Channel.
