Product Description
Temperature Humidity Transmitter Probe RS485 Output PE material sensor is double waterproofed to prevent condensation damage. Note: Even if buried in the soil, the sensor measures the relative humidity of the air in the soil, not the soil humidity.

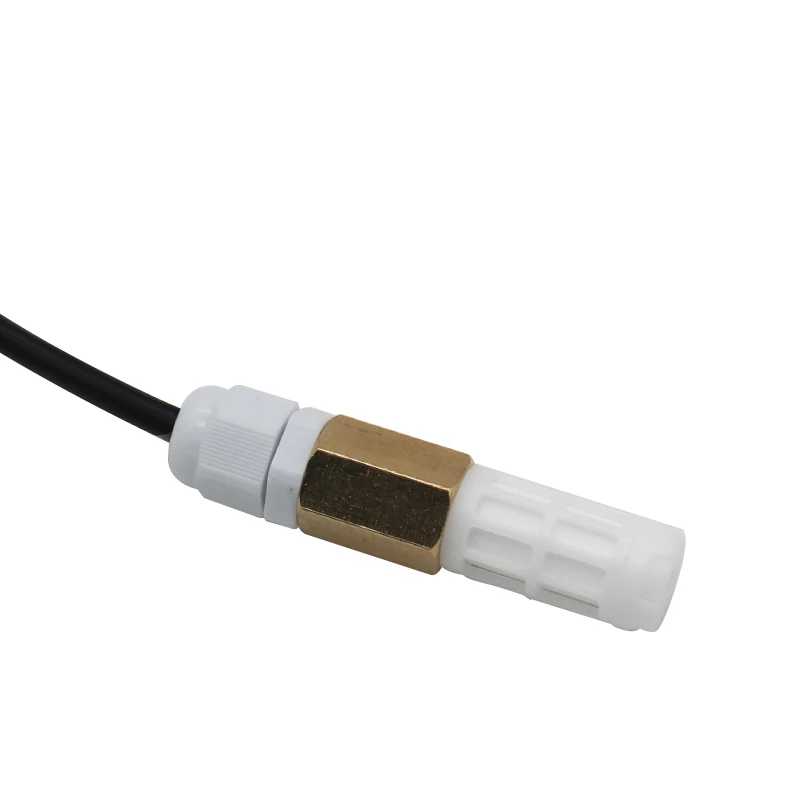

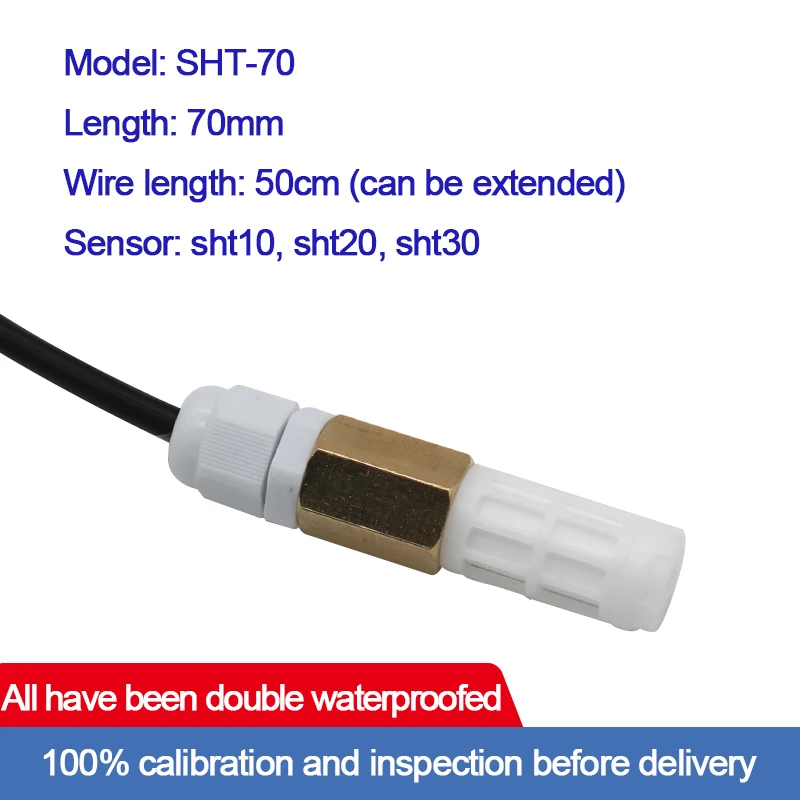

Detailed Images: Temperature Humidity Transmitter Probe RS485 Output PE material.
Feature:
1. Use imported sensors. 2.With 10k pull-up resistor and 0.1uf filter capacitor 3.All double waterproof treatments have been done 4. 100% power-on aging and inspection before leaving the factory 5. Wiring mode: brown — VCC black — GND yellow — DATA blue — CLK
Output | I2C, voltage output |
Supply voltage range | 2.15-5.5 V |
Power consumption | 4.8µW (low repeatability at 2.4 V, 1 time / second) |
Humidity working range | 0-100% RH |
Temperature operating range | -40 ° C-125 ° C (-40 ° F-257 ° F) |
Humidity response time | 8 seconds (tau63%) |
We offer high accuracy sht20 sensor probes, sht30 sensor probes and sht35 sensor probes. Our temperature and humidity sensor probe can be used in all industrial environments. It is made of high-temperature and corrosion-resistant polymer materials, uses special potting technology to ensure that the probe can work normally in high temperature and high humidity environments. The temperature and humdiity sensor probe can choose I2C output, rs485 output, or voltage output. The signal is stable, free from the interference of electromagnetic waves on-site.
