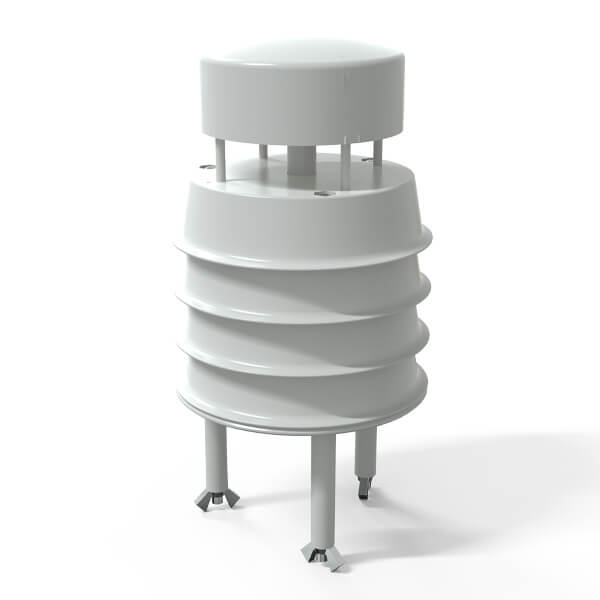

Ultrasonic Anemometer
It is a small ultrasonic anemometer for outdoor measurement of wind speed and direction.It features a compact design with no movable parts, offering a high protection level. This device is easy to install and suitable for use in harsh environments. This ultrasonic anemometer price is very cheap and meets the needs of most users.
Ultrasonic wind speed and direction sensors are currently widely used in power safety monitoring, bridges and tunnels, marine ships, urban environmental monitoring, road safety, and other fields.
Description
RS-CFSFX-*-3-EX ultrasonic anemometer is a measuring instrument that uses ultrasonic waves to propagate in the air to measure wind speed and direction. Its internal use low-power chips, power consumption is only 0.12W. It is especially suitable for solar or battery-powered environments with relatively high power consumption. Thanks to new technology and new technology, the structure is more compact and compact. Optional temperature and air pressure modules are also provided. The shell is made of high-strength ABS material, which is convenient for users to use in different environments. We provide a free cloud platform for customers to view data.
Parameters
Power supply: 10-30V DC
Range:
Wind speed:0～40m/s, Wind direction:0~360°
Accuracy:
Wind speed: ±0.5+2%FS(60%RH,25℃), Wind direction: ±3°(60%RH,25℃)
Resolution:
Wind speed: 0.01 m/s, Wind direction: 1°
Working environment: -40～80℃, 0～95%RH
Wind resistance: 75 m/s
Response time: 1S
Protection level: IP65
Output signal: 4~20mA, 0~5V, 0~10V, RS485
Starting wind speed: 0.5m/s
