PRICE CALCULATION of Ultrasonic Weather Station
| S.NO | YOUR OPTIONS TO ADD | CODE | PRICE |
| 1 | Basic Cost (Must Add) | 4800 | |
| 2 | Wind Speed & Direction | A | 9800 |
| 3 | Temperature & Humidity | B | 1050 |
| 4 | Noise | C | 1500 |
| 5 | Air Pressure | D | 1400 |
| 6 | PM2.5 & PM10 | E | 3750 |
| 7 | Light | F | 1500 |
| 8 | Rain | G | 7250 |
| 9 | Compass | H | 2250 |
For Example:
If you need Ultrasonic Weather Station for Wind Speed + Wind Direction + Noise then the total cost is Basic Cost (Rs.4800) + A (Rs.9800) + C (Rs.1500) = Total Rs.16,100
Introduction

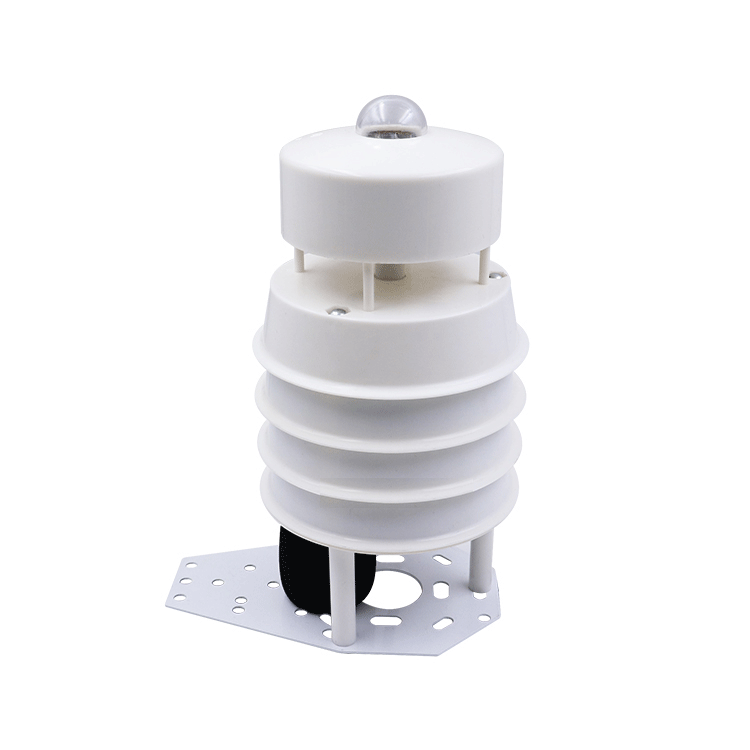

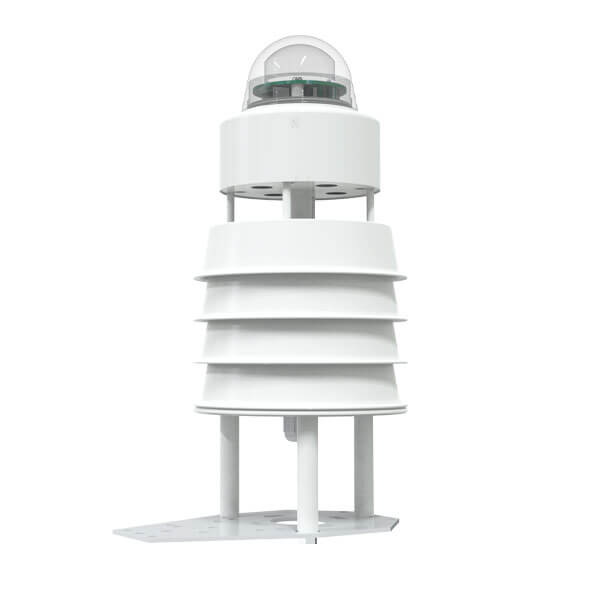

   The ultrasonic weather station is compact and integrated device consists of two parts: an ultrasonic anemometer on top and an all-in-one weather sensor below. With a built-in electronic compass, the installation process will not affect its position. The all-in-one sensor includes four modules in a solar radiation shield to measure temperature, humidity, noise, atmospheric pressure, and PM2.5/PM10.
High quality
The shell of this small ultrasonic anemometer is made of high-quality ABS material, which can effectively resist rain, snow, and ultraviolet rays. The four ultrasonic terminals adopt an upside-down design to avoid measurement errors caused by rain, snow, or sand accumulation.
Quick install
This ultrasonic wind sensor can be equipped with a built-in electronic compass and a device with a built-in electronic compass. There is no longer a position requirement during installation, just ensure that it is installed horizontally. Therefore, it can be used in mobile occasions such as marine ships, automobile transportation, etc., and there is no direct requirement during installation.
Long using life
The ultrasonic anemometer has a compact design, the entire structure does not have any parts that need to be moved, and there is no mechanical wear during use, so it has a long service life. Once installed, there is no need for maintenance and on-site calibration during use, which saves worry and effort.
Wide range
The wind speed and direction of this device are measured by the ultrasonic principle, so there is no angle limit, 360° Omni-directional, and accurate wind speed and wind direction data can be obtained at the same time.
Low price
Factory-direct sales, in stock. The price of the same type of small ultrasonic anemometer on the market is generally very high, while the price of our ultrasonic anemometer is very low, which can save you more than 40% of the cost.
Good service
We have professional technicians to solve various after-sales problems for you, such as wiring problems, installation problems, reading problems, etc. Ultrasonic anemometers provide a one-year warranty. In addition, we have a large inventory and fast delivery.
Ultrasonic weather station parameters
| Element | Measuring Range | Accuracy | Response time | Long-term stability |
|---|---|---|---|---|
| Wind speed | 0~60m/s | ±(0.2m/s±0.02*v) | 1S | — |
| Wind direction | 0~359° | ±3° | 1S | — |
| Humidity | 0%RH~99%RH | ±3%RH(60%RH,25℃) | ≤1s | ≤1%/y |
| Temperature | -40℃~+120℃ | ±0.5℃(25℃) | ≤1s | ≤0.1℃/y |
| Atmospheric pressure | 0-120Kpa | ±0.15Kpa@25℃ 101Kpa | ≤1s | -0.1Kpa/y |
| Noise | 30dB~120dB | ±0.5dB | ≤1s | ≤3db/y |
| PM10 PM2.5 | 0-1000ug/m3 | ±3%FS(@100μg/m3,25℃,50%RH) | ≤90S | ≤1%/y |
| CO2 | 0-5000ppm | ±(50ppm+ 3%F·S) (25℃) | ≤90S | ≤1%/y |
| Power supply | 10-30VDC | |||
| Protection level | IP66 | |||
| Output signal | RS485(Standard Mod bus communication protocol) | |||
