RS-WS-N01-5 humidity and temperature sensor

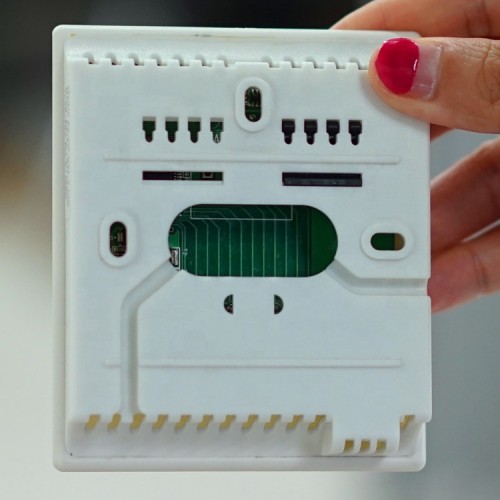

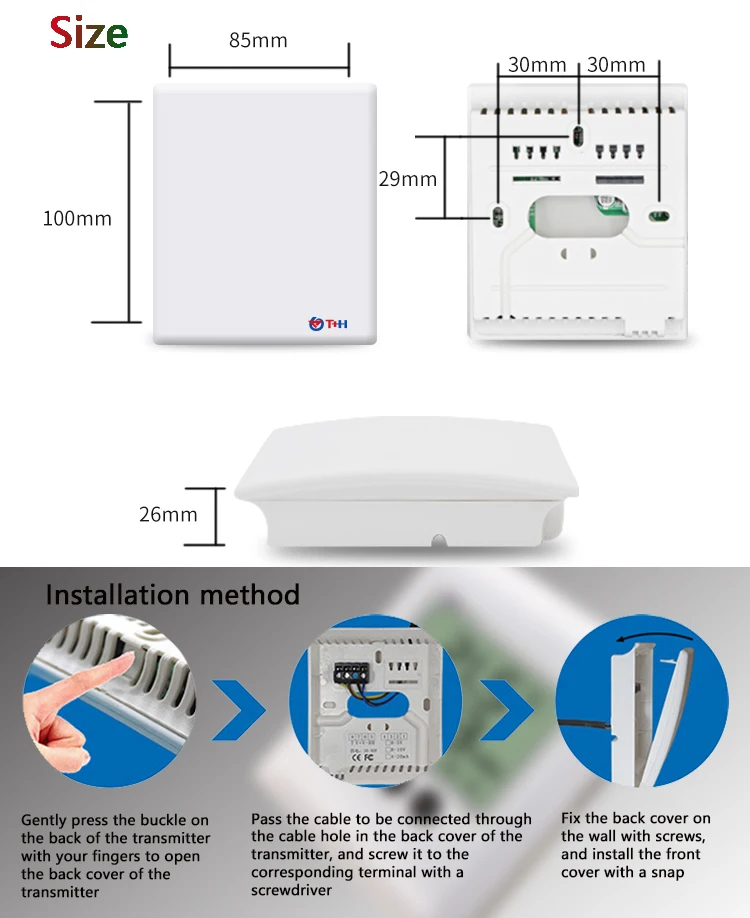

Our RS-WS-*-5-EX humidity and temperature sensor features a snap-on installation design, allowing for tool-free replacement of the sensitive element within seconds. The wall-mounted enclosure ensures easy and secure installation, making it an ideal solution for HVAC monitoring applications.

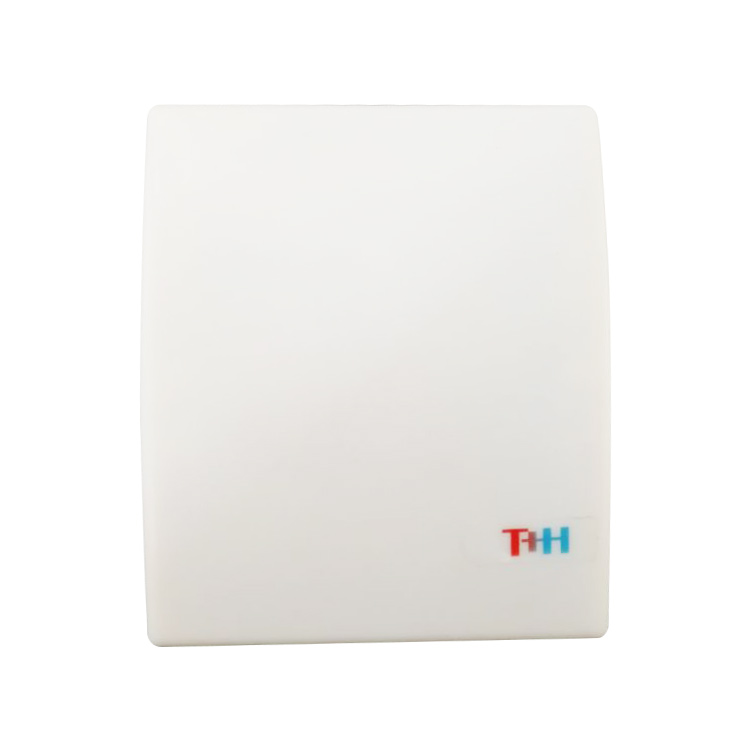

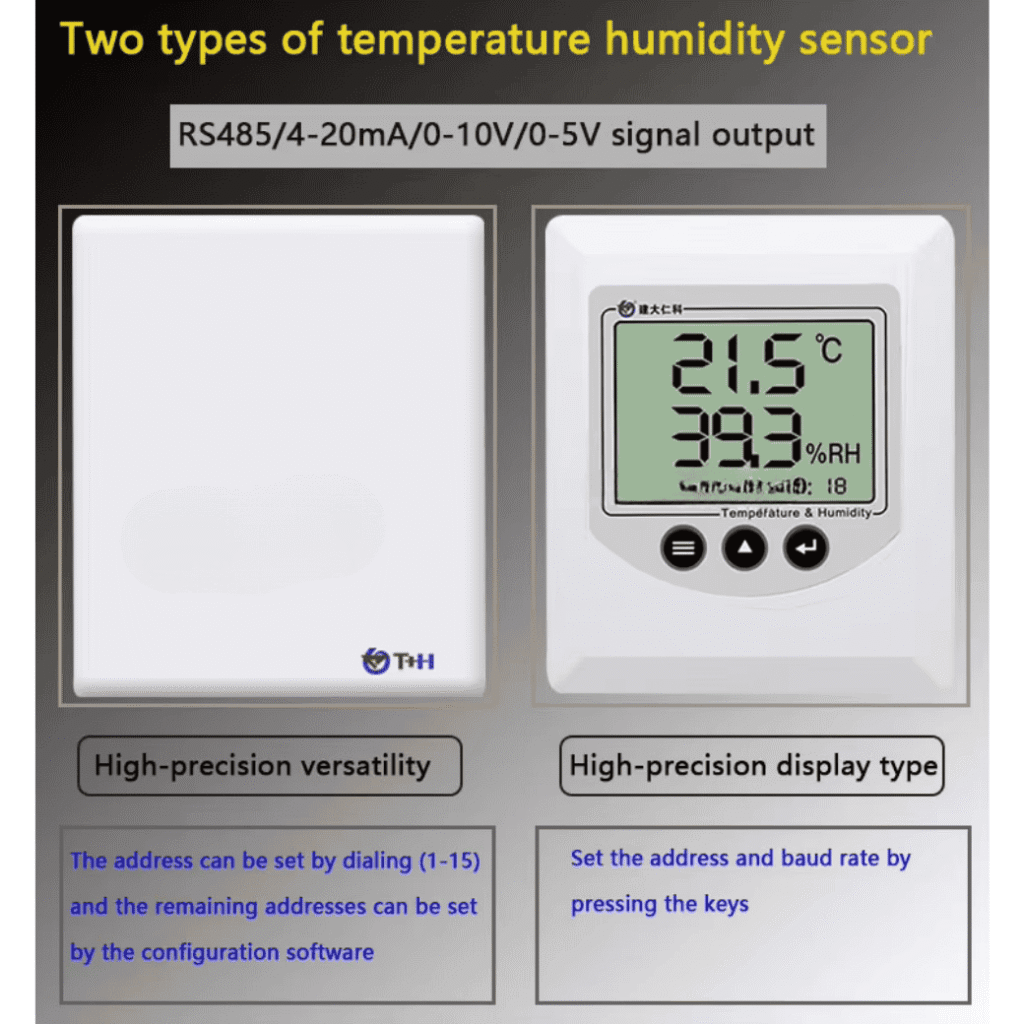

The non-display version offers four optional output types: RS485, 4–20mA, 0–5V, and 0–10V. For users requiring visual data, the RS485 output model is also available with an integrated display, offering flexible options to suit various application needs.
For details about the humidity and temperature sensor with display and the humidity and temperature sensor without display, please see the product video.
Product Description
| Wall Mount EE10 Temperature Humidity Sensor |
Power supply | 10~30V DC |
Humidity accuracy | ±3%RH (60%RH, 25℃) |
Temperature accuracy | ±0.5℃ (25℃) |
Humidity measurement range | 0~100% RH |
Temperature measurement range | -40℃~80℃ |
Output signal | 4~20mA/0~5V/0~10V/RS485 |
Datasheets
Power supply: 10~30V DC
Max. power consumption: 0.2W(RS485), 1.2W(Analog)
Measure range: -40℃~+80℃, 0%RH-100%RH
Accuracy: ±0.5℃(25℃), ±3%RH(60%RH,25℃)
Resolution: 0.1℃, 0.1%RH
Working environment: -20℃~+60℃, 0%RH~95%RH(non-condensing)
Long-term stability: temperature ≤0.1℃/y, humidity ≤1%RH/y
Response time: temperature ≤25s (1m/s wind speed 2), humidity ≤8s (1m/s wind speed 2)
Output signal: RS485/4-20mA/0-5V/0-10V

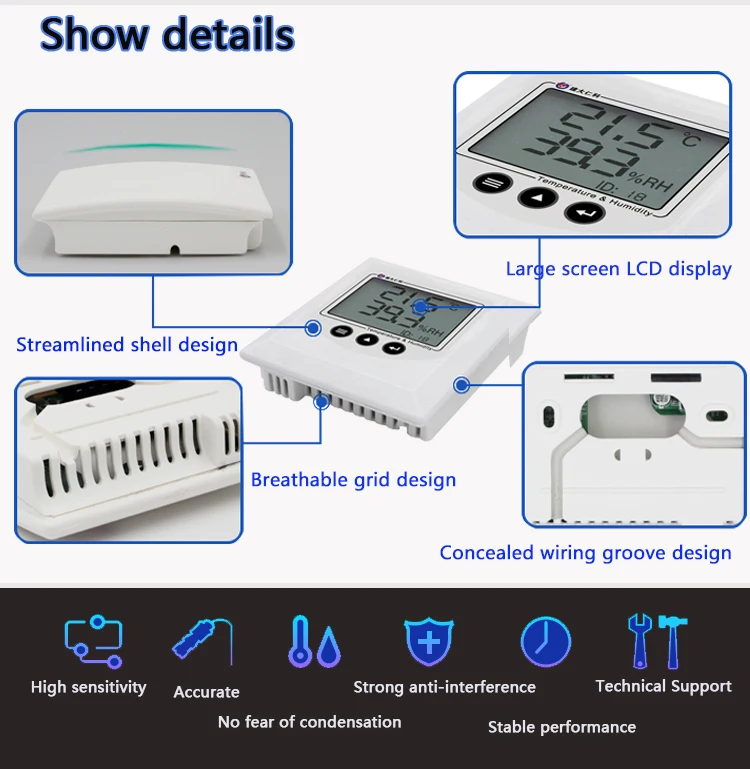

Features
1. This humidity and temperature sensor adopt an imported measuring unit, which has higher measurement accuracy and good long-term stability.
2. Elegant design, perfectly integrated with the installation environment.
3. This humidity and temperature sensor is easy to install and easy to maintain.
4. Use analog or Modbus RTU output.
5. 10-30V DC wide voltage power supply.
