Product Description
(Water Leak Location Sensor RS485 Output)

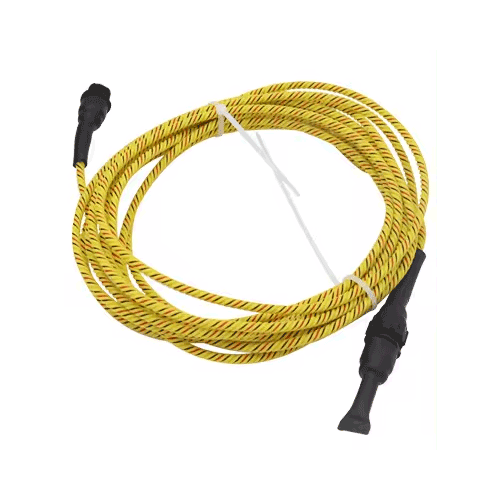

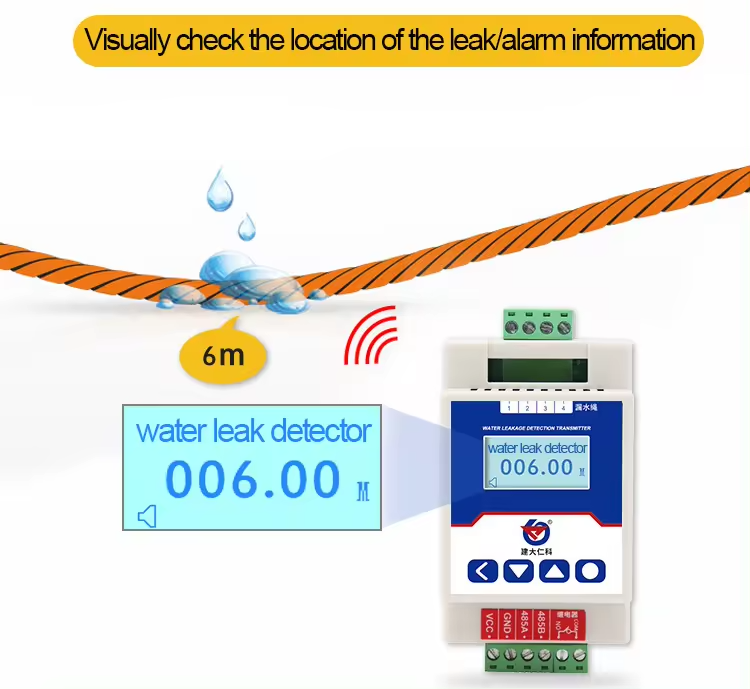

The position-based water immersion transmitter is a water leakage detection device designed by our company specifically for waterless environments such as computer rooms. It facilitates real-time detection of water leaks within the room and quickly locates the leak point. Upon detecting a leak, the leak cord immediately sounds an alarm and activates a relay. The relay can be connected to an external audible and visual alarm, and the leak location is displayed on the LCD.
|
Power Supply
|
10-30V DC
|
|
Power
|
0.35W
|
|
Positioning display
|
LED screen display
|
|
Relay load capacity
|
250V 10A
|
|
Serial interface
|
Standard MODBUS-RTU communication
|
|
working environment
|
-30~60℃，10~95%RH (non-condensing)
|
|
Storage environment
|
-20~50℃，10~95%RH (non-condensing)
|
|

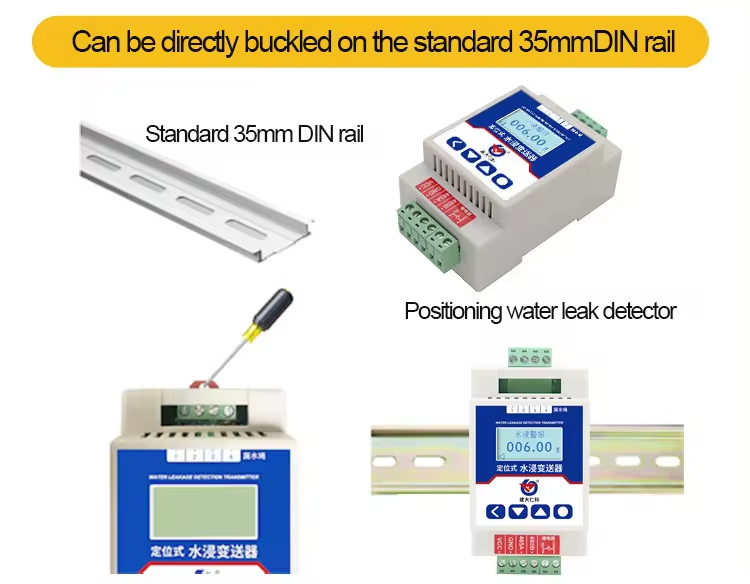

Installation method
|
35 DIN rail installation
|
|
Accuracy
|
±(0.5% of the leaking rope length + 0.5m)
|

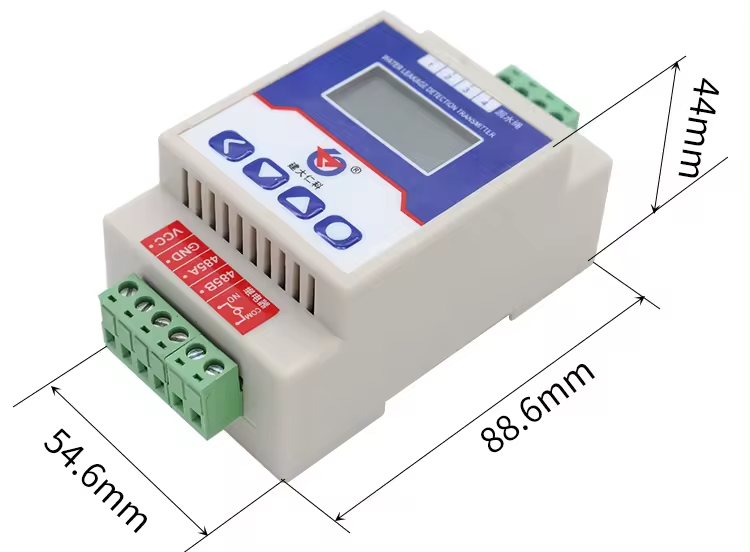

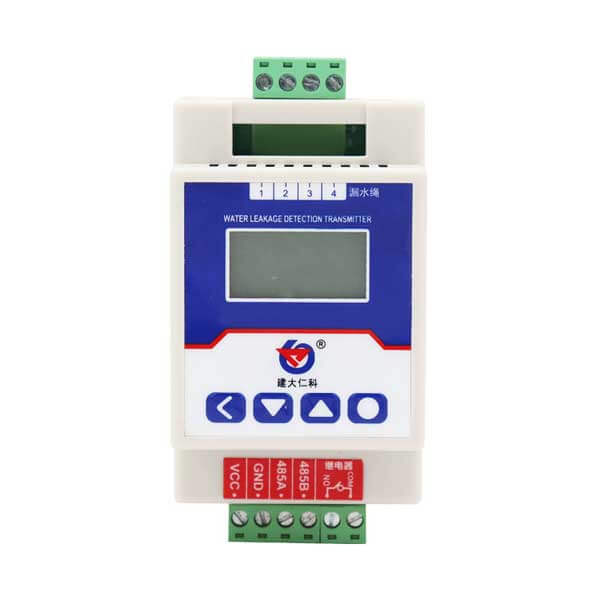

Detailed Images of Water Leak Location Sensor RS485 Output

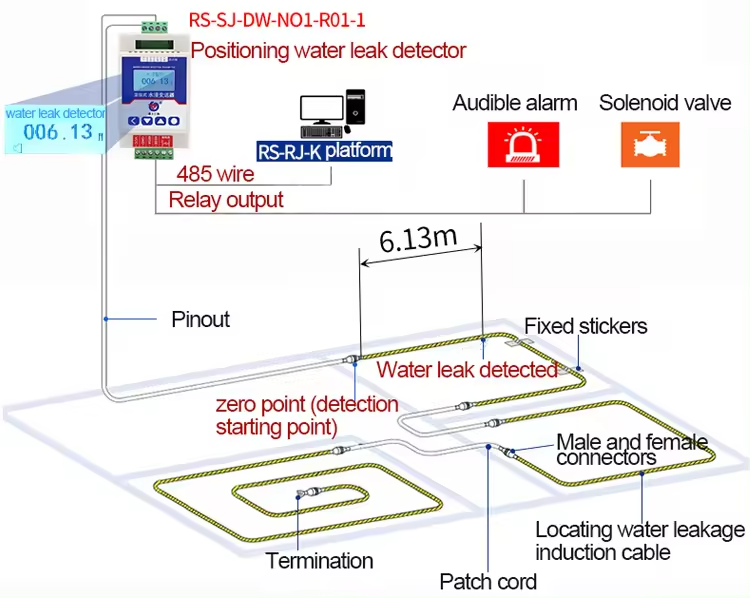

Installation Instructions

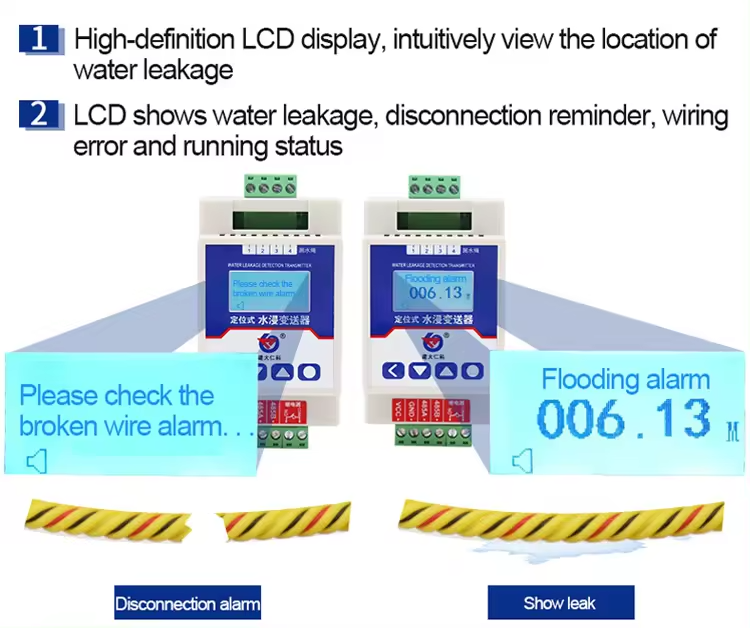

The device uses the standard ModBus-RTU protocol and can be connected to an integrated terminal for centralized management. It can operate as a standalone unit or connect to other integrated devices such as a PLC for data acquisition, programming, and networking. The device takes up a small footprint and utilizes a 128*64 high-definition LCD display. When an alarm is triggered, the screen flashes, ensuring instant visibility even in dark locations. The relay features selectable default on/off modes, facilitating configuration of various audible and visual alarms.
Application
